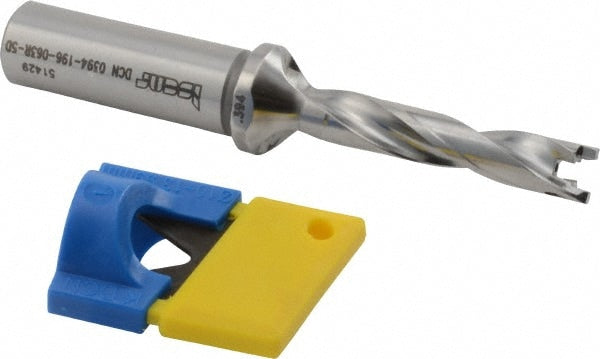

Replaceable-Tip Drill: 0.394 to 0.409" Dia, 1.96" Max Depth, 5/8" Flatted Shank
Item #: 06731210
Brand: Iscar
Model #: 3202623
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.3940 |
| Maximum Drill Diameter (Decimal Inch) | 0.4090 |
| Maximum Drill Depth (Decimal Inch) | 1.9600 |
| Shank Type | Flatted |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Maximum Drill Depth Range (Decimal Inch) | 1.5000 to 2.5000 |
| Compatible Insert Style | ICK; FCP; HCP-IQ; ICM; ICK-2M; ICP-2M; ICN; ICP; QCP-2M |
| Overall Length (Inch) | 4-1/2 |
| Series | SumoCham |
| Toolholder Style | DCN A-5D |
| Body Length (Decimal Inch) | 2.61 |
| Shank Length (Decimal Inch) | 1.8900 |
| Tool Application | Holemaking |
| Standards | ISO 13399 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
