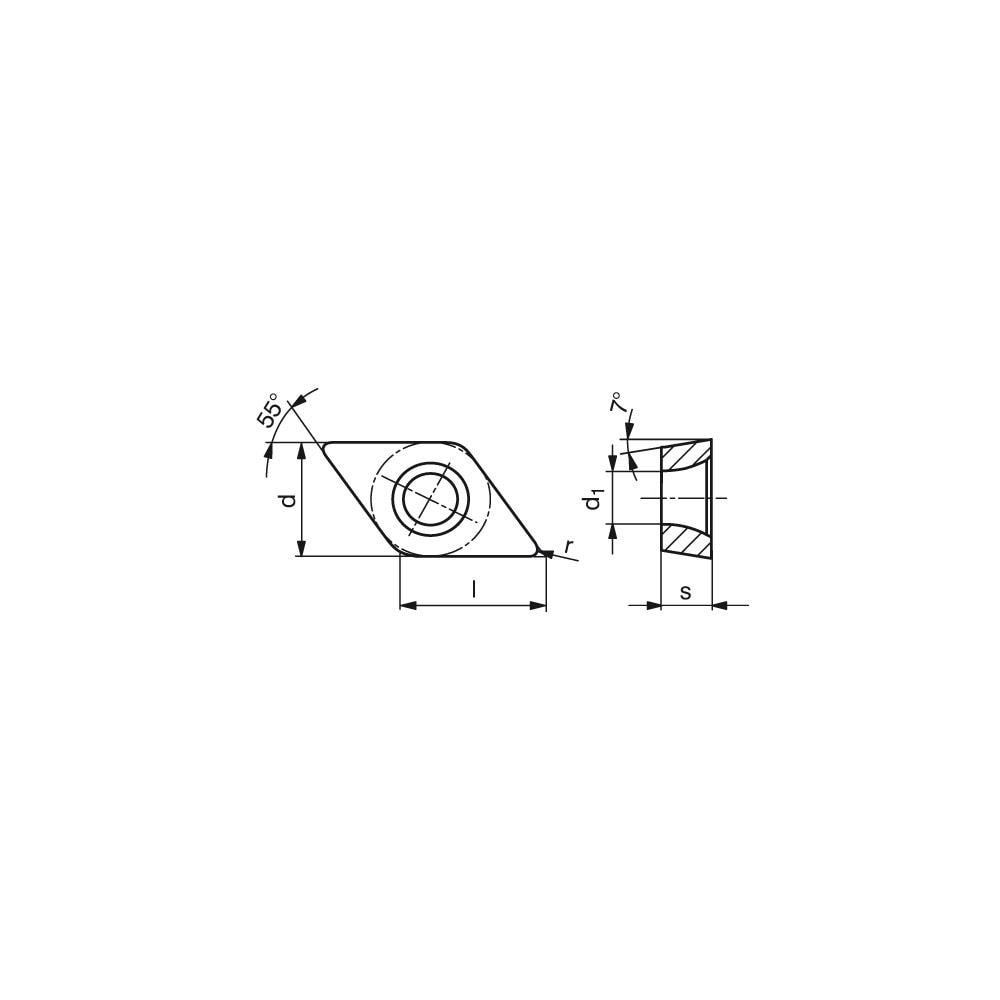

Turning Insert: DCMT2151ENSMQ CTCP125P, Carbide
Item #: 26292755
Brand: Ceratizit
Model #: 7619550401
Product Specifications
| ANSI Insert Code | DCMT21.51 |
| ISO Insert Code | DCMT070204 |
| Relief Angle | 7 |
| Insert Style | DCMT |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 55 |
| Manufacturer Grade | CTCP125P |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Wiper Edge | Yes |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Series | DCMT |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Insert Material | Carbide |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Maximum Depth of Cut (Decimal Inch) | 0.3051 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | CVD |
| Rake | Positive |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Iso Code | DCMT 070204EN-SMQ CTCP125-P |
| Chip Breaker | SMQ |
| ANSI Size Code | 21.51 |
| ISO Size Code | 070204 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 21.51 |
