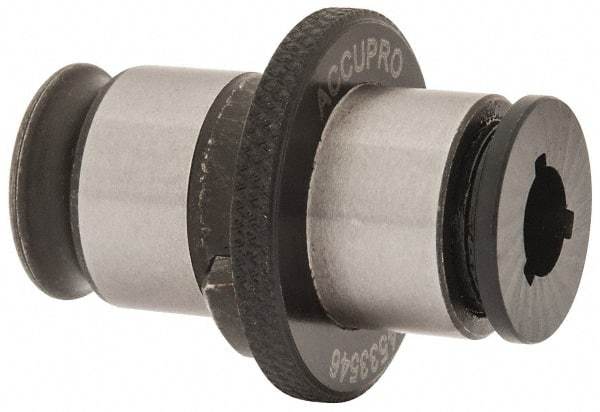

Accupro - 0.318" Tap Shank Diam, 0.238" Tap Square Size, 5/16" Tap, #1 Tapping Adapter - 0.276" Projection, 0.5118" Tap Depth, 25.5mm OAL, 19mm Shank OD, Through Coolant, Series WE 1 KP
Item #: 84533546
Brand: Accupro
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Tap Size (Inch) | 5/16 |
| Adapter Size | 1 |
| Tap Shank Diameter (Decimal Inch) | 0.3180 |
| Tap Square Size (Decimal Inch) | 0.2380 |
| Quick Change | Yes |
| Projection (mm) | 7.01 |
| Projection (Decimal Inch) | 0.2760 |
| Tap Depth (mm) | 13.00 |
| Tap Depth (Decimal Inch) | 0.5118 |
| Series | WE 1 KP |
| Overall Length (mm) | 25.50 |
| Flange Diameter (mm) | 30.00 |
| Outside Shank Diameter (mm) | 19.00 |
| Through Coolant | Yes |
| PSC Code | 5136 |
