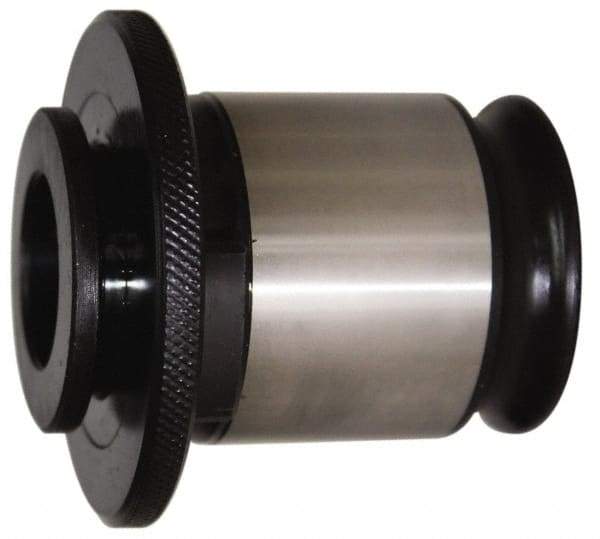

Accupro - 0.168" Tap Shank Diam, 0.131" Tap Square Size, #8 Tap, #2 Tapping Adapter - 0.2756" Projection, 0.6693" Tap Depth, 28.5mm OAL, 19mm Shank OD, Series WE 2
Item #: 84531722
Brand: Accupro
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Tap Size (Inch) | #8 |
| Adapter Size | 2 |
| Tap Shank Diameter (Decimal Inch) | 0.1680 |
| Tap Square Size (Decimal Inch) | 0.1310 |
| Quick Change | Yes |
| Projection (mm) | 7.00 |
| Projection (Decimal Inch) | 0.2756 |
| Tap Depth (mm) | 17.00 |
| Tap Depth (Decimal Inch) | 0.6693 |
| Series | WE 2 |
| Overall Length (mm) | 28.50 |
| Flange Diameter (mm) | 30.00 |
| Outside Shank Diameter (mm) | 19.00 |
| Through Coolant | No |
| PSC Code | 5136 |
