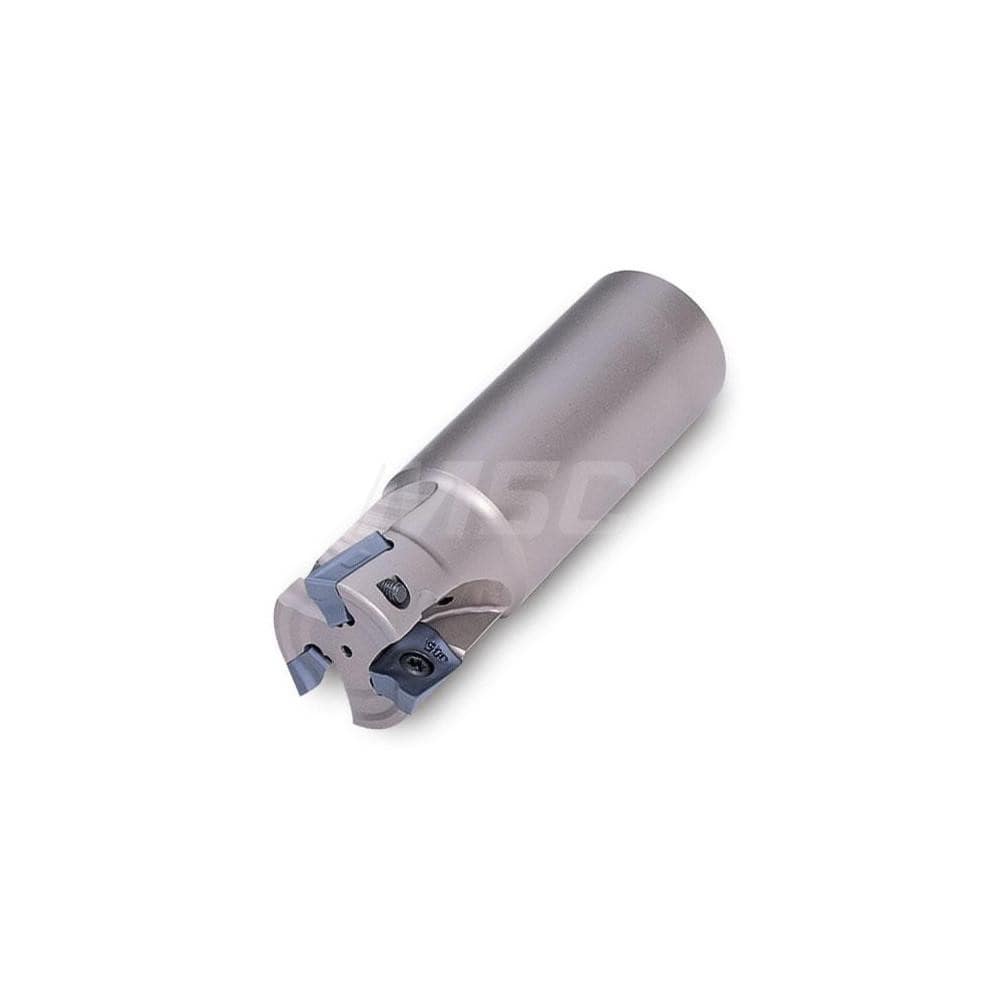

Indexable Square-Shoulder End Mill: 12J1E-1001780R01, 1" Cut Dia, 0.66" Max Depth of Cut, 1" Dia Weldon Flat Shank
Item #: 83688150
Brand: Ingersoll Cutting Tools
Model #: 3012023
Product Specifications
| Cutting Diameter | 1.0000 in |
| Cutting Diameter | 1 |
| Overall Length (Decimal Inch) | 4.0000 |
| Overall Length (Inch) | 4 |
| Maximum Depth of Cut (Decimal Inch) | 0.6600 |
| Cutter Style | 12J1E |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Insert Holding Method | Screw |
| Maximum Ramping Angle | 6 |
| Tool Material | Steel |
| Series | 12J1E |
| Flute Type | Straight |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 2.2500 |
| Head Length (Decimal Inch) | 1.5 |
| Modular Connection Size | None |
| Tool Application | Facing; Shouldering; Slotting; Ramping |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Rake | Positive |
| Complete Insert Compatibility | AO.T1805.. |
| Insert Compatibility | AOMT 1805.. |
| Hand of Holder | Right Hand |
| Multi-Use Tool | Yes |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 2 |
| Usable Length (Decimal Inch) | 1.5000 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | Yes |
