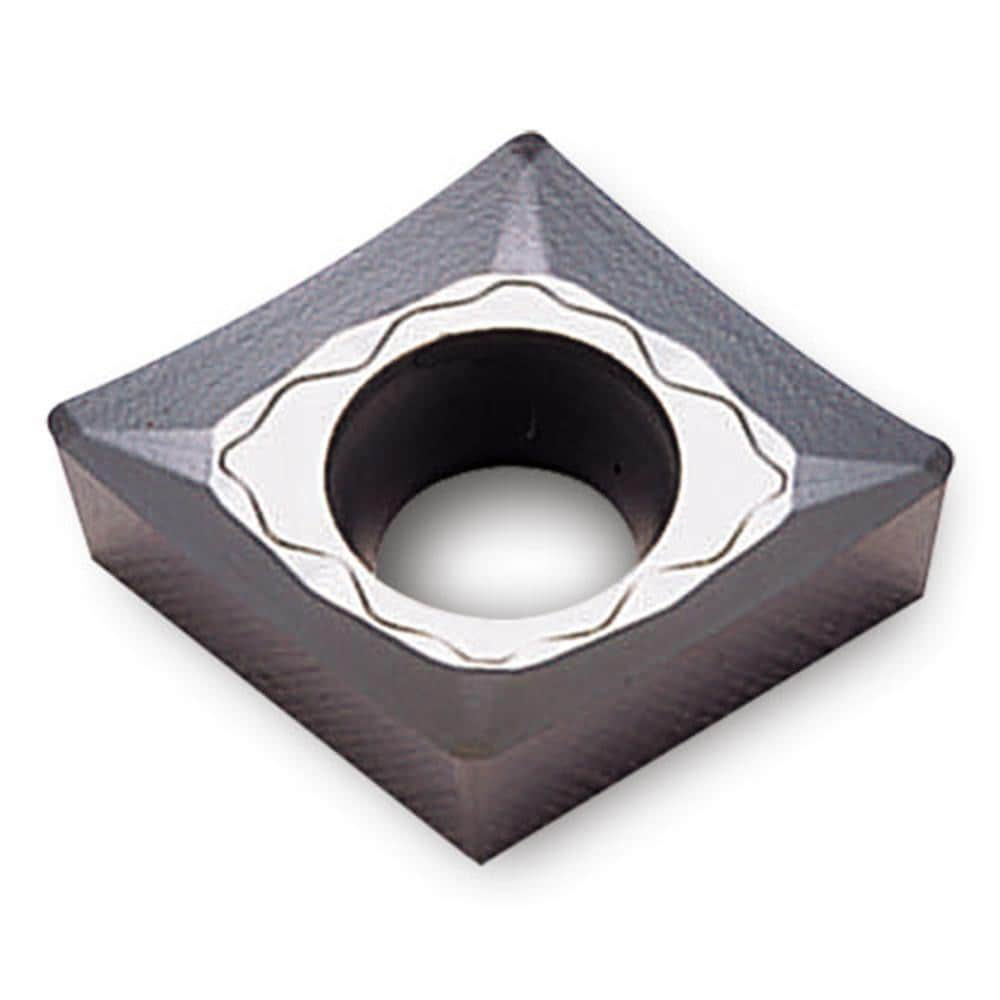

Turning Insert: CCGT32.52FL K10, Carbide
Item #: 64048788
Brand: Ingersoll Cutting Tools
Model #: 5512920
Product Specifications
| ANSI Insert Code | CCGT32.52 |
| ISO Insert Code | CCGT09T308 |
| Relief Angle | 7 |
| Insert Style | CCGT |
| Corner Radius (Decimal Inch) | 0.0310 |
| Included Angle | 80 |
| Manufacturer Grade | K10 |
| Coating/Finish | Bright/Uncoated |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1560 |
| Series | CCGT |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Material | Carbide |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Chip Breaker Operation | Medium Machining; Roughing |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance; Special, Super Alloys (S) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - High Wear-Resistance |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | G |
| Coating Process | Uncoated |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.3820 |
| Primary Workpiece Material | Non-Ferrous Metal; Superalloy; Cast Iron; Titanium |
| Primary Workpiece Material Code | S; K; N |
| Iso Code | CCGT09T308FL K10 |
| Standards | ISO |
| Chip Breaker | FL |
| ANSI Size Code | 32.52 |
| ISO Size Code | 09T308 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 32.52 |
| ANSI Insert Code | CCGT32.52 |
| ISO Insert Code | CCGT09T308 |
| Relief Angle | 7 |
| Insert Style | CCGT |
| Corner Radius (Decimal Inch) | 0.0310 |
| Included Angle | 80 |
| Manufacturer Grade | K10 |
| Coating/Finish | Bright/Uncoated |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1560 |
| Series | CCGT |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Material | Carbide |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Chip Breaker Operation | Medium Machining; Roughing |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance; Special, Super Alloys (S) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - High Wear-Resistance |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | G |
| Coating Process | Uncoated |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.3820 |
| Primary Workpiece Material | Non-Ferrous Metal; Superalloy; Cast Iron; Titanium |
| Primary Workpiece Material Code | S; K; N |
| Iso Code | CCGT09T308FL K10 |
| Standards | ISO |
| Chip Breaker | FL |
| ANSI Size Code | 32.52 |
| ISO Size Code | 09T308 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 32.52 |
| MSC Part # | 64048788 |
| Mfr Part # | 5512920 |
