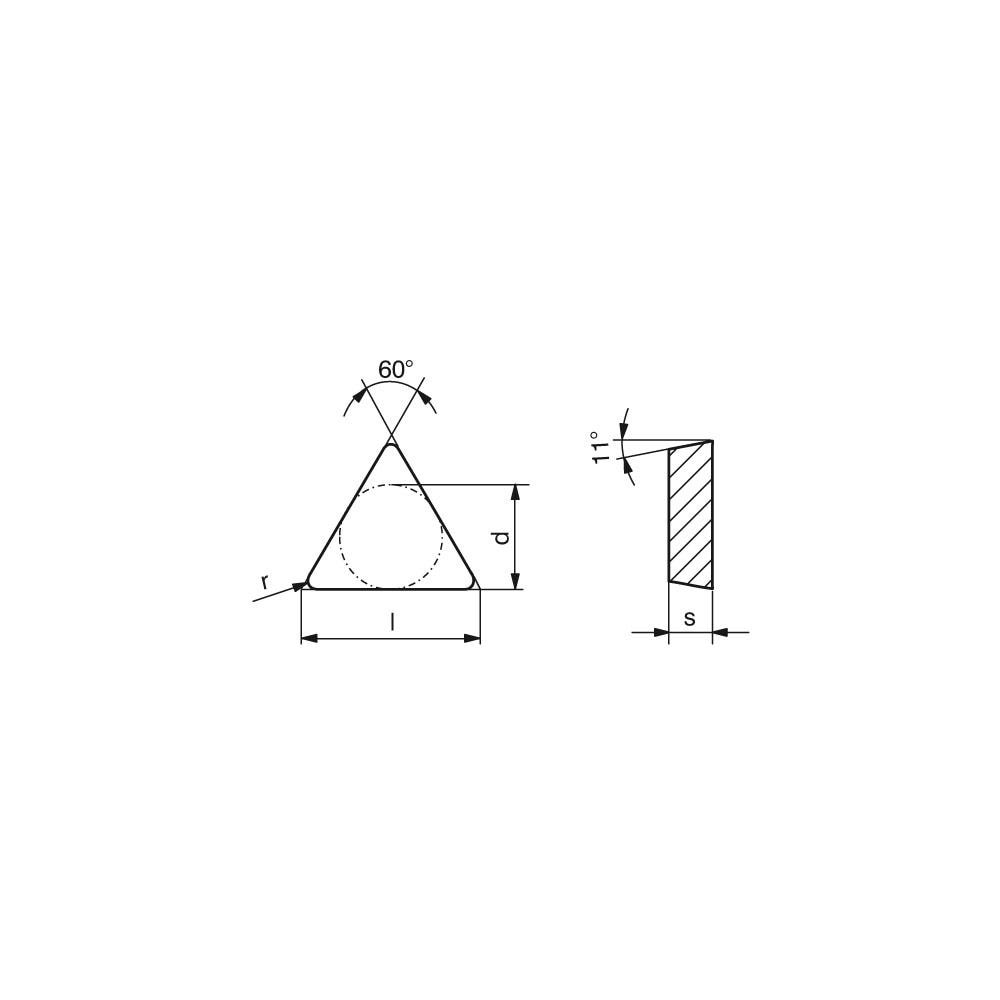

Turning Insert: TPUN322EN CTCP135, Carbide
Item #: 26292243
Brand: Ceratizit
Model #: 76212722
Product Specifications
| ANSI Insert Code | TPUN322 |
| ISO Insert Code | TPUN160308 |
| Relief Angle | 11 |
| Insert Style | TPUN |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 60 |
| Manufacturer Grade | CTCP135 |
| Coating/Finish | TiCN; Al2O3 |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1252 |
| Series | TPUN |
| Inscribed Circle (Decimal Inch) | 0.3748 |
| Insert Material | Carbide |
| Insert Shape | T - Triangle |
| Grade Characteristics | Steel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 3 |
| Insert Shape Code | T |
| Maximum Depth of Cut (Decimal Inch) | 0.6496 |
| Insert Holding Method | Clamp |
| Clearance Code | P |
| Tolerance Code | U |
| Coating Process | CVD |
| Rake | Positive |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P; M |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Iso Code | TPUN 160308EN CTCP135 |
| Chip Breaker | N |
| ANSI Size Code | 322 |
| ISO Size Code | 160308 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 322 |
