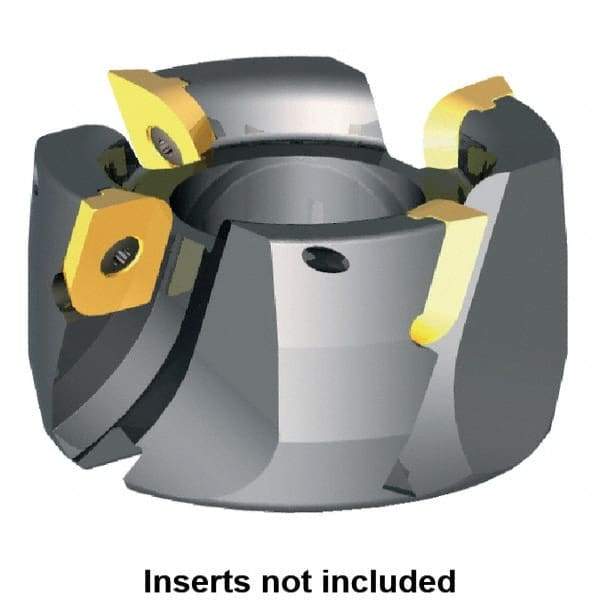

Kennametal - 4 Inserts, 50mm Cut Diam, 22mm Arbor Diam, 10mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 50mm High, LFEW 1503.. Insert Compatibility, Series RPF
Item #: 84214485
Brand: Kennametal
Model #: 1024477
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Cutting Diameter (Decimal Inch) | 1.9685 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 50.00 |
| Overall Height (Decimal Inch) | 1.9685 |
| Insert Compatibility | LFEW 1503.. |
| Series | RPF |
| Maximum Depth of Cut (mm) | 10.00 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| Number of Flutes | 4 |
| Hub Diameter (mm) | 42.00 |
| Maximum Body Diameter (Decimal Inch) | 1.9185 |
| Maximum RPM | 12350 |
| Complete Insert Compatibility | LFEW 150308 |
