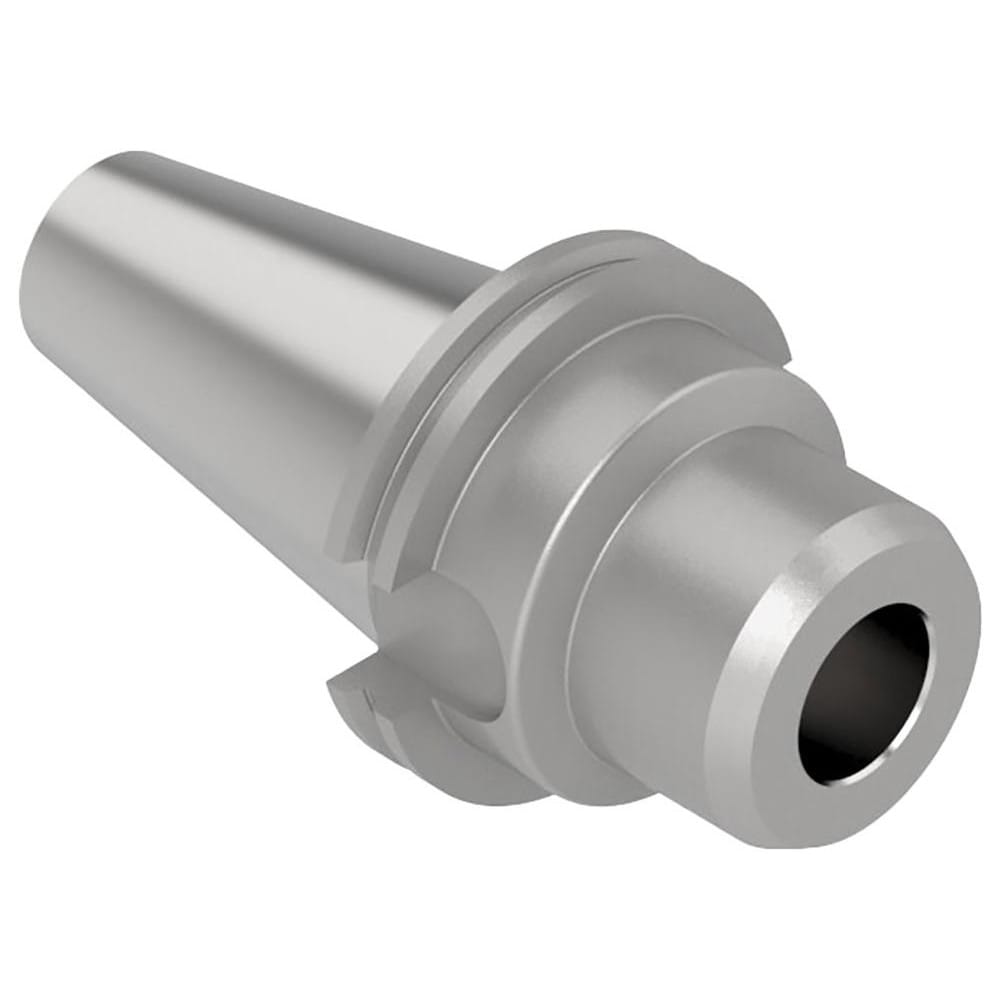

Hydraulic Tool Chuck: CAT50 Taper Shank, 1-1/4" Hole
Item #: 74009226
Brand: Allied Machine and Engineering
Model #: HYD-CV50I1250
Product Specifications
| Shank Type | Taper |
| Taper Size | CAT50 |
| Hole Diameter (Inch) | 1-1/4 |
| Hole Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Decimal Inch) | 2.7500 |
| Shank Diameter (mm) | 69.8500 |
| Shank Diameter (Inch) | 2-3/4 |
| Nose Diameter | 2-3/16 |
| Nose Diameter (Mm) ( - 2 Decimals) | 55.48 |
| Projection (mm) | 81.000 |
| Projection | 3-3/16 |
| Clamping Depth (mm) | 60.50 |
| Clamping Depth (Decimal Inch) | 2.3819 |
| Balanced To Rpm | 25000 |
| Through Coolant | Yes |
| Overall Length (Decimal Inch) | 7.1890 |
| Overall Length (mm) | 182.6000 |
| Hole Diameter (Mm) ( - 0 Decimals) | 31.75 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 2.1843 |
| Projection (Decimal Inch) | 3.1890 |
| UNSPSC Code | 27112800 |
| Shank Type | Taper |
| Taper Size | CAT50 |
| Hole Diameter (Inch) | 1-1/4 |
| Hole Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Decimal Inch) | 2.7500 |
| Shank Diameter (mm) | 69.8500 |
| Shank Diameter (Inch) | 2-3/4 |
| Nose Diameter | 2-3/16 |
| Nose Diameter (Mm) ( - 2 Decimals) | 55.48 |
| Projection (mm) | 81.000 |
| Projection | 3-3/16 |
| Clamping Depth (mm) | 60.50 |
| Clamping Depth (Decimal Inch) | 2.3819 |
| Balanced To Rpm | 25000 |
| Through Coolant | Yes |
| Overall Length (Decimal Inch) | 7.1890 |
| Overall Length (mm) | 182.6000 |
| Hole Diameter (Mm) ( - 0 Decimals) | 31.75 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 2.1843 |
| Projection (Decimal Inch) | 3.1890 |
| UNSPSC Code | 27112800 |
| MSC Part # | 74009226 |
| Mfr Part # | HYD-CV50I1250 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
