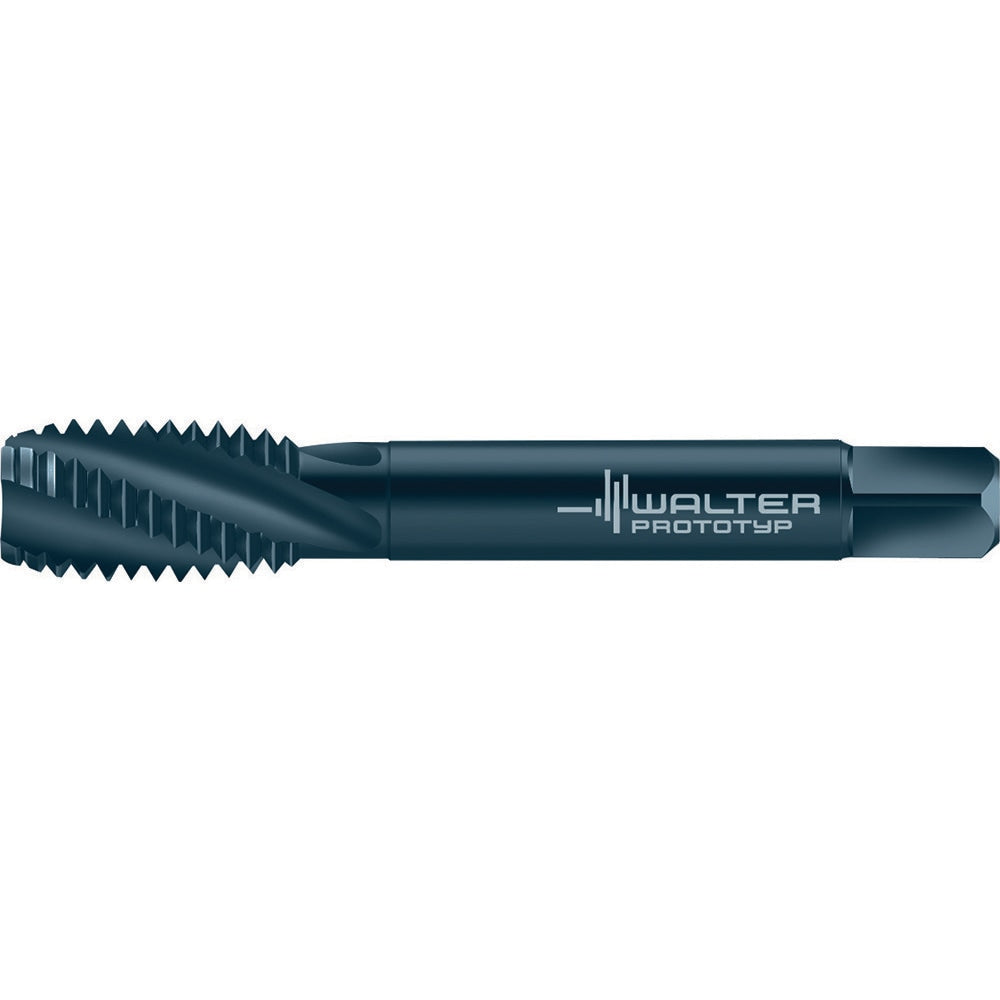

Spiral Flute Tap: 7/16-20, UNF, 4 Flute, Semi-Bottoming Chamfer, 3B Class of Fit, High-Speed Steel-E, Steam Oxide Finish
Item #: 90970732
Brand: Walter-Prototyp
Model #: 8046409
Product Specifications
| Thread Size (Inch) | 7/16-20 |
| Thread Standard | UNF |
| Chamfer | Semi-Bottoming |
| Material | High-Speed Steel-E |
| Thread Limit | H9 |
| Class Of Fit | 3B |
| Coating/Finish | Steam Oxide |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Number Of Flutes | 4 |
| Flute Direction | Right Hand |
| Helix Angle | 25.00 |
| Oversize | No |
| Threads per Inch | 20 |
| Thread Length (Decimal Inch) | 0.8661 |
| Thread Length (mm) | 22.00 |
| Overall Length (Decimal Inch) | 3.1575 |
| Overall Length (mm) | 80.2000 |
| Application | Threading |
| Shank Diameter (Decimal Inch) | 0.3230 |
| Shank Diameter (mm) | 8.2000 |
| Tapping Depth (Decimal Inch) | 0.8661 |
| Tapping Depth (mm) | 22.00 |
| Square Length (mm) | 10.30 |
| Square Length (Decimal Inch) | 0.4055 |
| Square Size (Decimal Inch) | 0.2420 |
| Square Size (mm) | 6.14 |
| Flute Style | Spiral |
| Series | A234502S |
| UNSPSC Code | 23241600 |
| Country of Origin | Germany |
