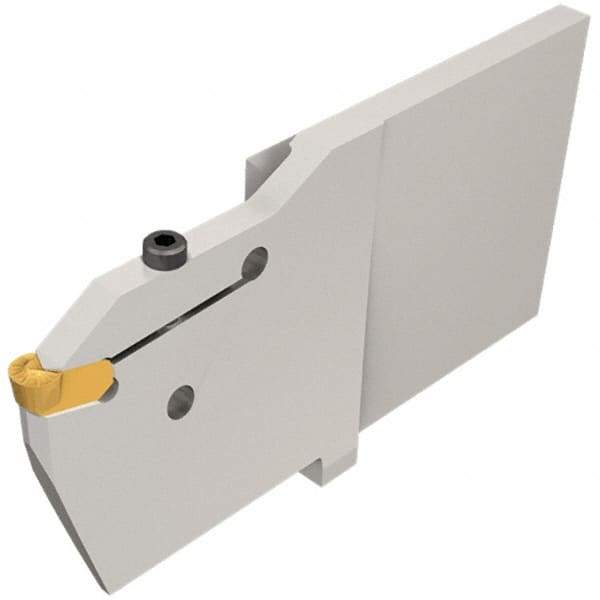

Iscar - 8" Groove Width, 120mm Max Depth of Cut, Left Hand Cut, CGFG Indexable Grooving Blade - GIMF, GIMM 8CC, GIMY, GIMY (Full Radius), GIMY-F Insert Style, Series Cut Grip
Item #: 84093558
Brand: Iscar
Model #: 2801438
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Left Hand |
| Minimum Groove Width (mm) | 8.00 |
| Minimum Groove Width (Decimal Inch) | 0.3150 |
| Maximum Depth of Cut (mm) | 120.00 |
| Maximum Depth of Cut (Decimal Inch) | 4.7244 |
| Blade Style | CGFG |
| Series | Cut Grip |
| Minimum Workpiece Diameter (mm) | 700.00 |
| Minimum Workpiece Diameter (Decimal Inch) | 27.5591 |
| Maximum Workpiece Diameter (mm) | 1500.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 59.0551 |
| Blade Height (mm) | 52.60 |
| Blade Height (Decimal Inch) | 2.0709 |
| Blade Width (mm) | 20.00 |
| Blade Width (Decimal Inch) | 0.7874 |
| Maximum Groove Width (mm) | 8.00 |
| Maximum Groove Width (Decimal Inch) | 0.3150 |
| Overall Length (mm) | 250.00 |
| Overall Length (Decimal Inch) | 9.8425 |
| Insert Style | GIMF; GIMM 8CC; GIMY; GIMY (Full Radius); GIMY-F |
| Complete Insert Compatibility | GIMF 808; GIMM 8CC; GIMY 808; GIMY 840; GIMY 840F |
