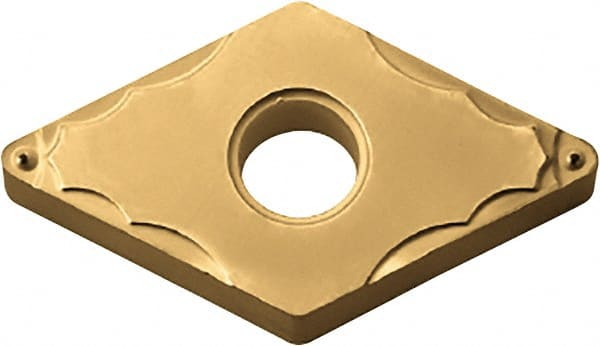

DNMG331GP PV90 Cermet Turning Insert TiN Finish, Neutral, 3/8″ Inscribed Circle, 1/64″ Corner Radius, 55° Diamond
Item #: 83948638
Brand: Kyocera
Model #: TKZ00751
Product Specifications
| Insert Style | DNMG |
| Insert Shape Code | D |
| Insert Size Code | 331 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Cermet |
| Manufacturer Grade | PV90 |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.81 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Pin; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness | 4.76 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Included Angle | 55.0 |
| Relief Angle | 0 |
| Coating Process | PVD |
| Rake | Negative |
| Primary Workpiece Material | P |
| Iso Code | DNMG110404GP |
| Manufacturers Catalog Number | DNMG331GP PV90 |
| Cutting Direction | Neutral |
| Chip Breaker | G |
| Rake Angle | 10 |
| Multi-Use Tool | No |
| Coating/Finish | TiN |
| Multi-Use Application | Turning |
