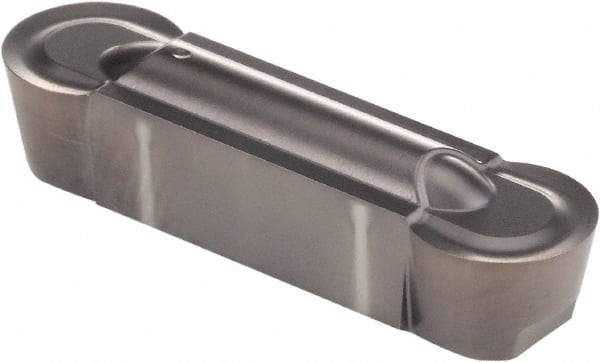

Kennametal - 0800A4 GMP Grade KCU10, 0.315" Cutting Width Carbide Grooving Insert - 0.256" Max Depth of Cut, Neutral, 0.1575" Corner Radius, AlTiN Finish
Item #: 83893438
Brand: Kennametal
Model #: 4034823
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | A4 |
| Insert Size | 0800 |
| Material | Carbide |
| Cutting Width (Decimal Inch) | 0.3150 |
| Maximum Depth of Cut (Decimal Inch) | 0.2560 |
| Manufacturer's Grade | KCU10 |
| Coating | AlTiN |
| Insert Hand | Neutral |
| Cutting Height (Decimal Inch) | 0.0000 |
| Lead Angle | 0 |
| Insert Seat Size | 8 |
| Chipbreaker | GMP |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Turning |
| Corner Radius (Decimal Inch) | 0.1575 |
| Coating Process | PVD |
| Series | A4 |
| Manufacturers Catalog Number | A4R0800M08P00GMP |
