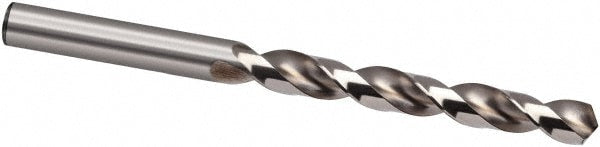

Jobber Drill: #13, 130 deg Point, High Speed Steel
Item #: 58609033
Brand: Guhring
Model #: 9002070047000
Product Specifications
| Drill Bit Size (Wire) | #13 |
| Drill Bit Size (Decimal Inch) | 0.1850 |
| Drill Bit Material | HSS |
| Drill Point Angle (Degrees) | 130 |
| Coating/Finish | Bright/Uncoated |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Cone Relief |
| Primary Workpiece Material | Aluminum & Non-Ferrous |
| Coolant Through | No |
| Number of Flutes | 2 |
| Primary Workpiece Material Code | N |
| Shank Diameter (Decimal Inch) | 0.1850 |
| Overall Length (mm) | 80.00 |
| Overall Length (Decimal Inch) | 3.1496 |
| Spiral Type | Regular |
| Flute Length (mm) | 47.00 |
| Flute Length (Decimal Inch) | 1.8504 |
| Series | 207 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 4.7 |
| Maximum Drilling Depth (Decimal Inch) | 1.5730 |
| Maximum Drilling Depth (mm) | 39.95 |
| Shank Length (mm) | 33 |
| Drill Bit Diameter Tolerance | h8 |
| Web Thinning | Web-Thinned |
| Shank Type | Straight |
| Standards | DIN 338 |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.1500 - 0.2000 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| Drill Bit Size (Wire) | #13 |
| Drill Bit Size (Decimal Inch) | 0.1850 |
| Drill Bit Material | HSS |
| Drill Point Angle (Degrees) | 130 |
| Coating/Finish | Bright/Uncoated |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Cone Relief |
| Primary Workpiece Material | Aluminum & Non-Ferrous |
| Coolant Through | No |
| Number of Flutes | 2 |
| Primary Workpiece Material Code | N |
| Shank Diameter (Decimal Inch) | 0.1850 |
| Overall Length (mm) | 80.00 |
| Overall Length (Decimal Inch) | 3.1496 |
| Spiral Type | Regular |
| Flute Length (mm) | 47.00 |
| Flute Length (Decimal Inch) | 1.8504 |
| Series | 207 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 4.7 |
| Maximum Drilling Depth (Decimal Inch) | 1.5730 |
| Maximum Drilling Depth (mm) | 39.95 |
| Shank Length (mm) | 33 |
| Drill Bit Diameter Tolerance | h8 |
| Web Thinning | Web-Thinned |
| Shank Type | Straight |
| Standards | DIN 338 |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.1500 - 0.2000 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| MSC Part # | 58609033 |
| Mfr Part # | 9002070047000 |
| Country of Origin Country of Origin is subject to change | Germany |
