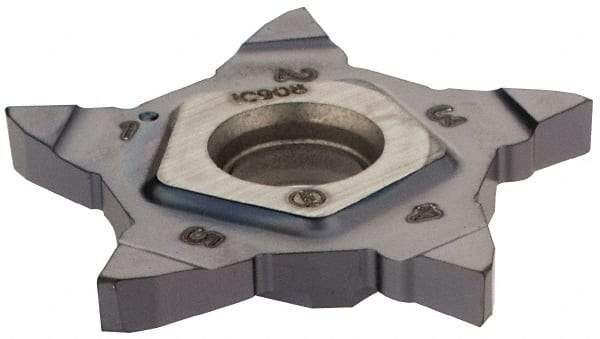

Iscar - 24N239020PENTA Grade IC908, 3/32" Cutting Width Carbide Grooving Insert - 0.197" Max Depth of Cut, Right Hand, 0.008" Corner Radius, TiAlN Finish
Item #: 83787788
Brand: Iscar
Model #: 6095003
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | PENTA |
| Insert Size | 24N239020 |
| Material | Carbide |
| Cutting Width (Decimal Inch) | 0.0940 |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Material Grade | C1/C2/C6/C7 |
| Manufacturer's Grade | IC908 |
| Coating | TiAlN |
| Insert Hand | Right Hand |
| Multi-Use Tool | No |
| Corner Radius (Decimal Inch) | 0.0080 |
| Coating Process | PVD |
| Series | PENTA |
| Manufacturers Catalog Number | PENTA 24N239NF020RS |
