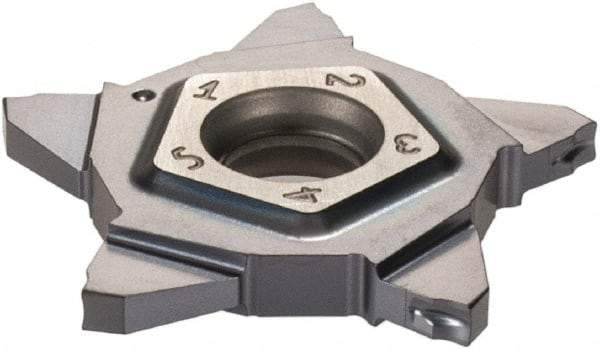

Iscar - 24N178PENTA Grade IC908, 1.78mm Cutting Width Carbide Grooving Insert - 3mm Max Depth of Cut, Neutral, 0.18mm Corner Radius, TiN/TiAlN Finish
Item #: 83787481
Brand: Iscar
Model #: 6003116
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | PENTA |
| Insert Size | 24N178 |
| Material | Carbide |
| Cutting Width (mm) | 1.78 |
| Cutting Width (Decimal Inch) | 0.0700 |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1180 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC908 |
| Coating | TiN/TiAlN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Parting |
| Corner Radius (mm) | 0.18 |
| Corner Radius (Decimal Inch) | 0.0070 |
| Coating Process | PVD |
| Series | PentaCut |
| ISO Number | PENTA 24N178J018 |
| Manufacturers Catalog Number | PENTA 24N178J018 |
