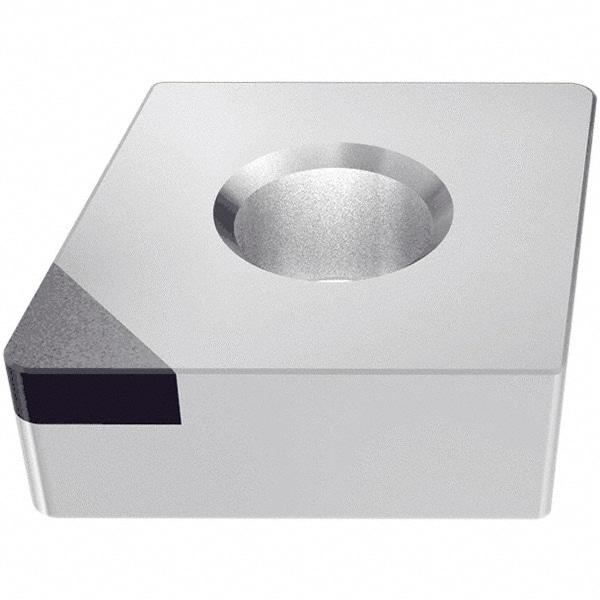

Iscar - CNMA432 T Grade IB50 CBN Turning Insert - Uncoated, 80° Diamond, 1/2" Inscr Circle, 3/16" Thick, 1/32" Corner Radius
Item #: 83685214
Brand: Iscar
Model #: 5700435
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | CNMA |
| Insert Size | 432 |
| Material | CBN |
| Length (mm) | 12.90 |
| Length (Decimal Inch) | 0.5080 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Manufacturer's Grade | IB50 |
| Coating | Uncoated |
| Chip Breaker | T |
| ISO Number | CNMA 432T |
| Relief Angle | 0 |
| Manufacturers Catalog Number | CNMA 432T |
| Included Angle | 80 |
| Series | Isoturn |
| Insert Holding Method | Pin & Clamp |
| Multi Use Application | Boring |
| MultiUseTool | Yes |
| Shape | Diamond |
