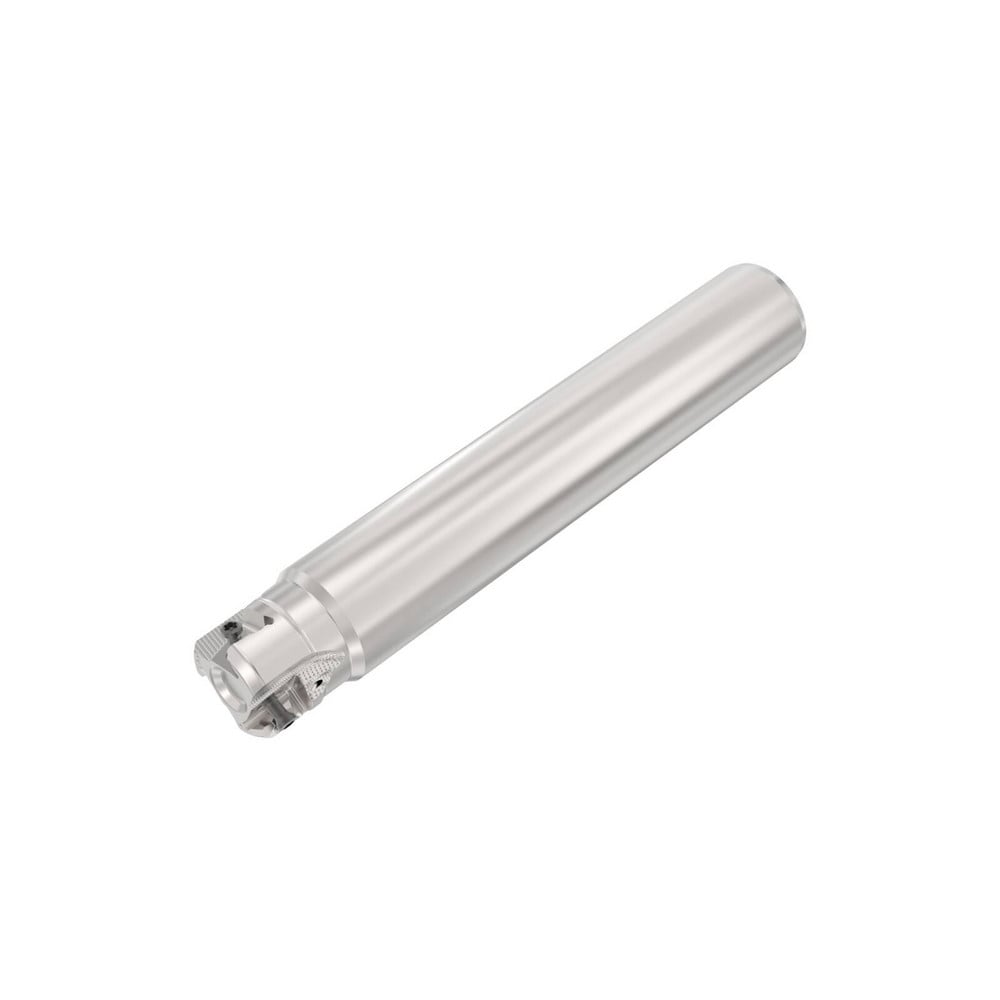

Indexable Square-Shoulder End Mill: R217.943232.0LO123A, Cylindrical Shank
Item #: 86550993
Brand: Seco
Model #: 10207967
Product Specifications
| Cutting Diameter (mm) | 32.00 |
| Overall Length (mm) | 195.00 |
| Maximum Depth of Cut (mm) | 12.00 |
| Cutter Style | R217.94 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 32.0000 |
| Insert Holding Method | Screw |
| Maximum Ramping Angle | 0 |
| Tool Material | Steel |
| Series | R217.94-12 |
| Flute Type | Straight |
| Lead Angle | 90 |
| Shank Length (mm) | 165.000 |
| Head Length (mm) | 135.00 |
| Maximum RPM | 12400.000 |
| Tool Application | Slotting; Shouldering |
| Tool Performance | General Purpose |
| Standards | ISO; ANSI |
| Rake | Negative |
| Complete Insert Compatibility | LOEX1207 |
| Insert Compatibility | LOEX1207 |
| Hand of Holder | Right Hand |
| Multi-Use Tool | Yes |
| UNSPSC Code | 27112803 |
| ISO Number | R217.94-3232.0-LO12-3A |
| Manufacturers Catalog Number | 10207967 |
| Usable Length (mm) | 30.000 |
| Number Of Flutes | 3 |
| Number Of Cutter Inserts | 3 |
| Coolant Through | Yes |
| Country of Origin | France |
