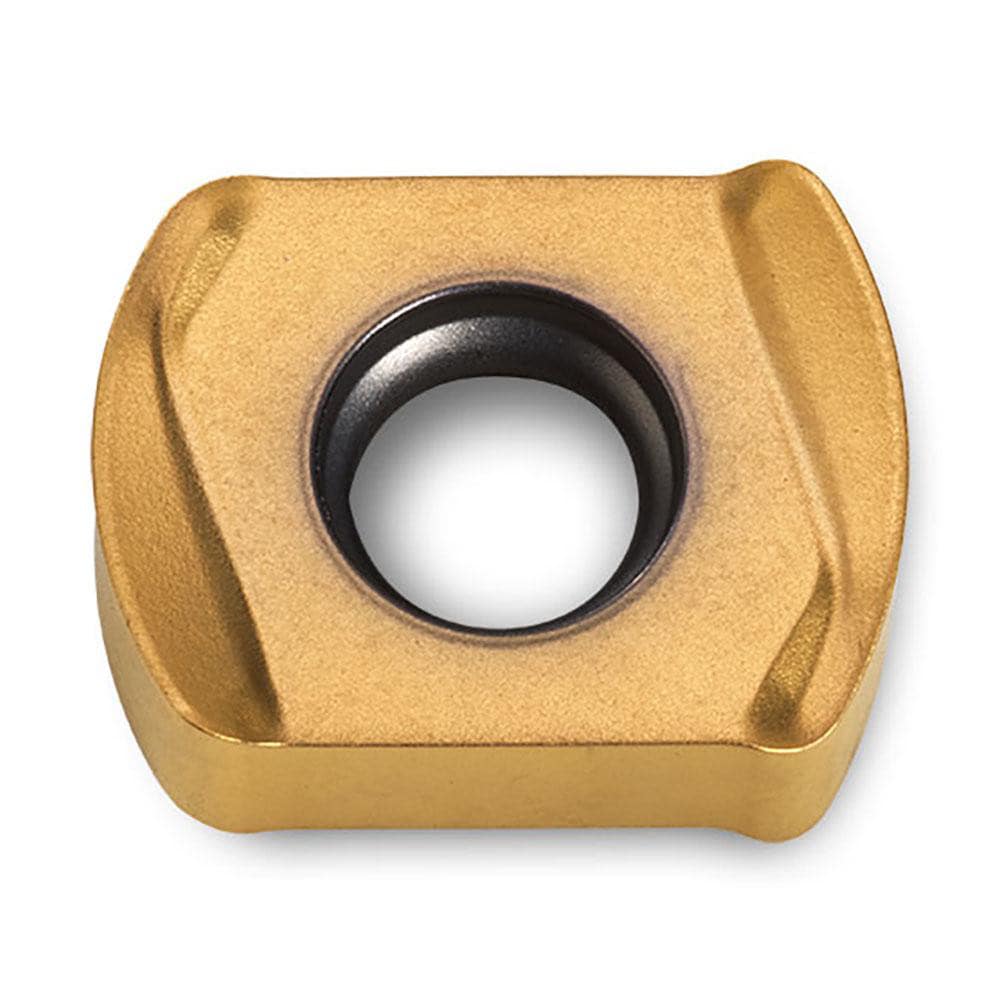

Milling Insert: UNLU0904M0TR IN2530 IN2530, Solid Carbide
Item #: 66771411
Brand: Ingersoll Cutting Tools
Model #: 5616092
Product Specifications
| Insert Style | UNLU |
| Insert Size | 09 |
| Insert Material | Solid Carbide |
| Insert Shape | Irregular |
| Manufacturer Grade | IN2530 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1890 |
| Coating/Finish | TiN; TiAlN |
| Relief Angle | 0.00 |
| Insert Size Code | 0904 |
| Material Grade | Coarse Grain |
| Length (Inch) | 15/32 |
| Inscribed Circle (Decimal Inch) | 0.3610 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Corner Radius (Inch) | 3/64 |
| Inscribed Circle Range (Decimal Inch) | 0.3500 to 0.4000 |
| Length Range (Decimal Inch) | 0.4500 to 0.5000 |
| Insert Hand | Right Hand |
| Series | UNLU |
| Coating Process | PVD |
| Rake | Negative |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | UNLU0904M0TR IN2530 |
| Iso Code | UNLU0904M0TR IN2530 |
| Standards | ISO; ANSI |
| Cutting Edge Style | Chamfered |
| Manufacturers Catalog Number | 5616092 |
| Cutter Series Compatibility | TG3G; TG4G; 1TG1G; TG1G; TG2G |
| Chip Breaker | None |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Width (Decimal Inch - 4 Decimals) | 0.3610 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.4690 |
| Insert Style | UNLU |
| Insert Size | 09 |
| Insert Material | Solid Carbide |
| Insert Shape | Irregular |
| Manufacturer Grade | IN2530 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1890 |
| Coating/Finish | TiN; TiAlN |
| Relief Angle | 0.00 |
| Insert Size Code | 0904 |
| Material Grade | Coarse Grain |
| Length (Inch) | 15/32 |
| Inscribed Circle (Decimal Inch) | 0.3610 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Corner Radius (Inch) | 3/64 |
| Inscribed Circle Range (Decimal Inch) | 0.3500 to 0.4000 |
| Length Range (Decimal Inch) | 0.4500 to 0.5000 |
| Insert Hand | Right Hand |
| Series | UNLU |
| Coating Process | PVD |
| Rake | Negative |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | UNLU0904M0TR IN2530 |
| Iso Code | UNLU0904M0TR IN2530 |
| Standards | ISO; ANSI |
| Cutting Edge Style | Chamfered |
| Manufacturers Catalog Number | 5616092 |
| Cutter Series Compatibility | TG3G; TG4G; 1TG1G; TG1G; TG2G |
| Chip Breaker | None |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Width (Decimal Inch - 4 Decimals) | 0.3610 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.4690 |
| MSC Part # | 66771411 |
| Mfr Part # | 5616092 |
