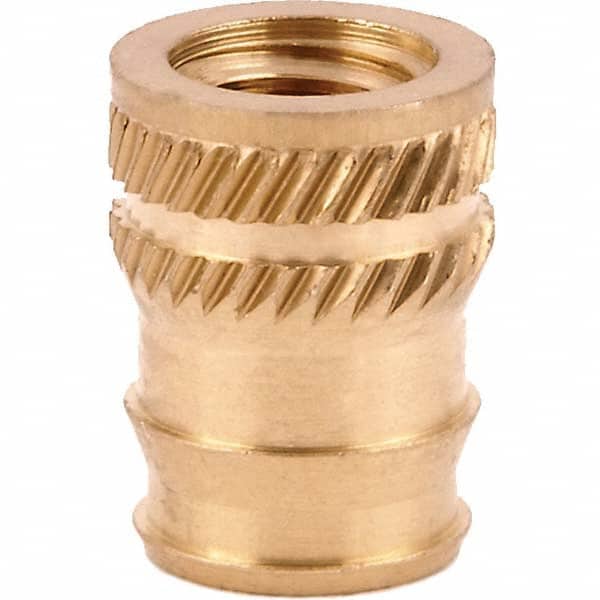

Tapered Hole Threaded Inserts; Product Type: Double Vane; System of Measurement: Metric; Thread Size (mm): M6x1.0; Overall Length (Decimal Inch): 0.5000; Thread Size: M6x1.0 mm; Insert Diameter (Decimal Inch): 0.3750; Pilot Diameter (Decimal Inch): 0.3320
Item #: 83258517
Brand: E-Z LOK
Model #: DV-M60-TH
Product Specifications
| Product Type | Double Vane |
| System of Measurement | Metric |
| Thread Size (mm) | M6x1.0 |
| Overall Length (Decimal Inch) | 0.5000 |
| Thread Size | M6x1.0 mm |
| Insert Diameter (Decimal Inch) | 0.3750 |
| Pilot Diameter (Decimal Inch) | 0.3320 |
| Insert Diameter | 0.375 in |
| Small End Hole Diameter (Decimal Inch) | 0.3630 |
| Large End Hole Diameter | 0.321 in |
| Large End Hole Diameter (Decimal Inch) | 0.3210 |
| Minimum Wall Thickness (Decimal Inch) | 0.1940 |
| Pilot Diameter | 0.332 in |
| Small End Hole Diameter | 0.363 in |
