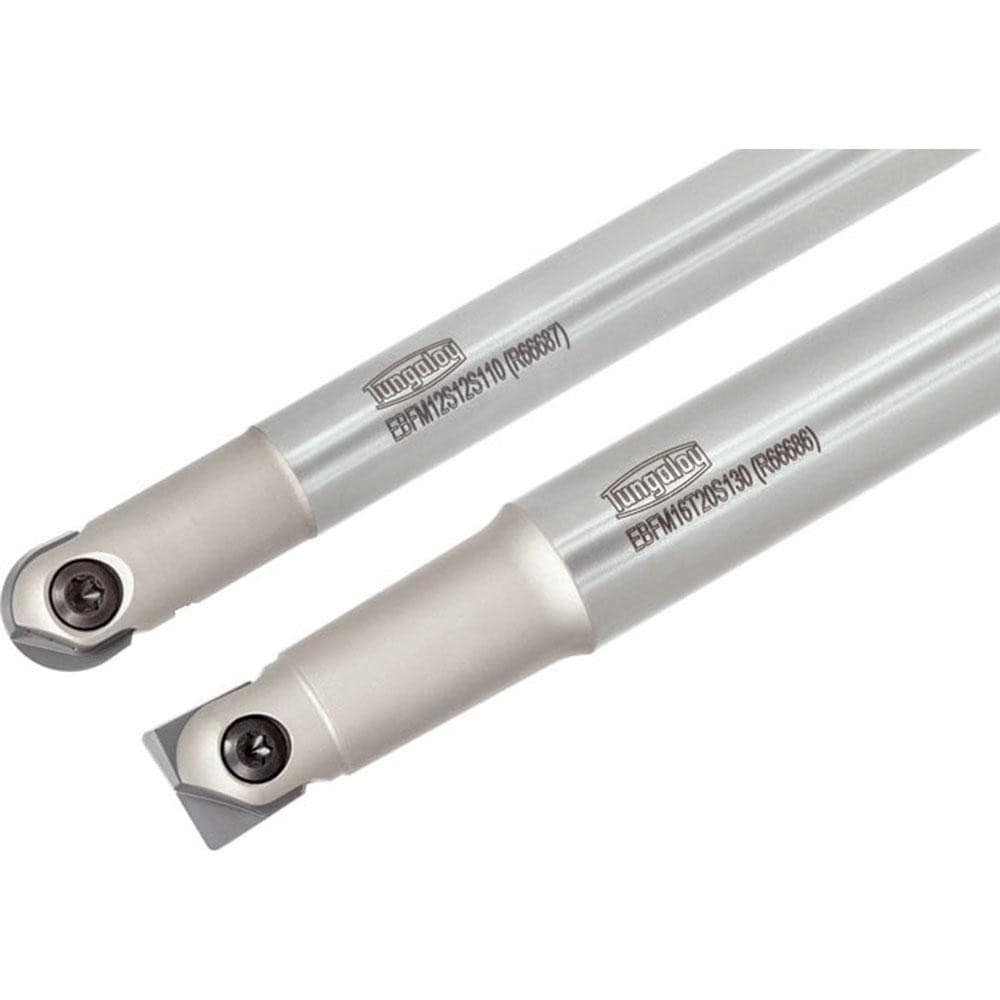

Indexable Ball Nose End Mills; Cutting Diameter (Decimal Inch): 0.3937; Cutting Diameter (mm): 10.00; Tool Material: Carbide; Maximum Depth of Cut (mm): 5.00; Shank Type: Cylindrical
Item #: 62060561
Brand: Tungaloy
Model #: 6725788
Product Specifications
| Cutting Diameter (Decimal Inch) | 0.3937 |
| Cutting Diameter (mm) | 10.00 |
| Tool Material | Carbide |
| Maximum Depth of Cut (mm) | 5.00 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 10.0000 |
| Insert Holding Method | Screw |
| Compatible Insert Style | ZFBM |
| Compatible Insert Size Code | 100 |
| Toolholder Style | EBFM |
| Tapered Neck | No |
| Overall Length (mm) | 140.0000 |
| Series | EBFM |
| Head Length (mm) | 75.00 |
| Tool Application | Profile Milling; Milling |
| Manufacturers Catalog Number | EBFM10S10C140 |
| Number Of Flutes | 1 |
| Coolant Through | No |
| Number of Ball Nose Inserts | 1 |
| Number Of Inserts | 1 |
| Complete Insert Compatibility | ZFBM |
| UNSPSC Code | 27112803 |
| Cutting Diameter (Decimal Inch) | 0.3937 |
| Cutting Diameter (mm) | 10.00 |
| Tool Material | Carbide |
| Maximum Depth of Cut (mm) | 5.00 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 10.0000 |
| Insert Holding Method | Screw |
| Compatible Insert Style | ZFBM |
| Compatible Insert Size Code | 100 |
| Toolholder Style | EBFM |
| Tapered Neck | No |
| Overall Length (mm) | 140.0000 |
| Series | EBFM |
| Head Length (mm) | 75.00 |
| Tool Application | Profile Milling; Milling |
| Manufacturers Catalog Number | EBFM10S10C140 |
| Number Of Flutes | 1 |
| Coolant Through | No |
| Number of Ball Nose Inserts | 1 |
| Number Of Inserts | 1 |
| Complete Insert Compatibility | ZFBM |
| UNSPSC Code | 27112803 |
| MSC Part # | 62060561 |
| Mfr Part # | 6725788 |
| Country of Origin Country of Origin is subject to change | South Korea |
