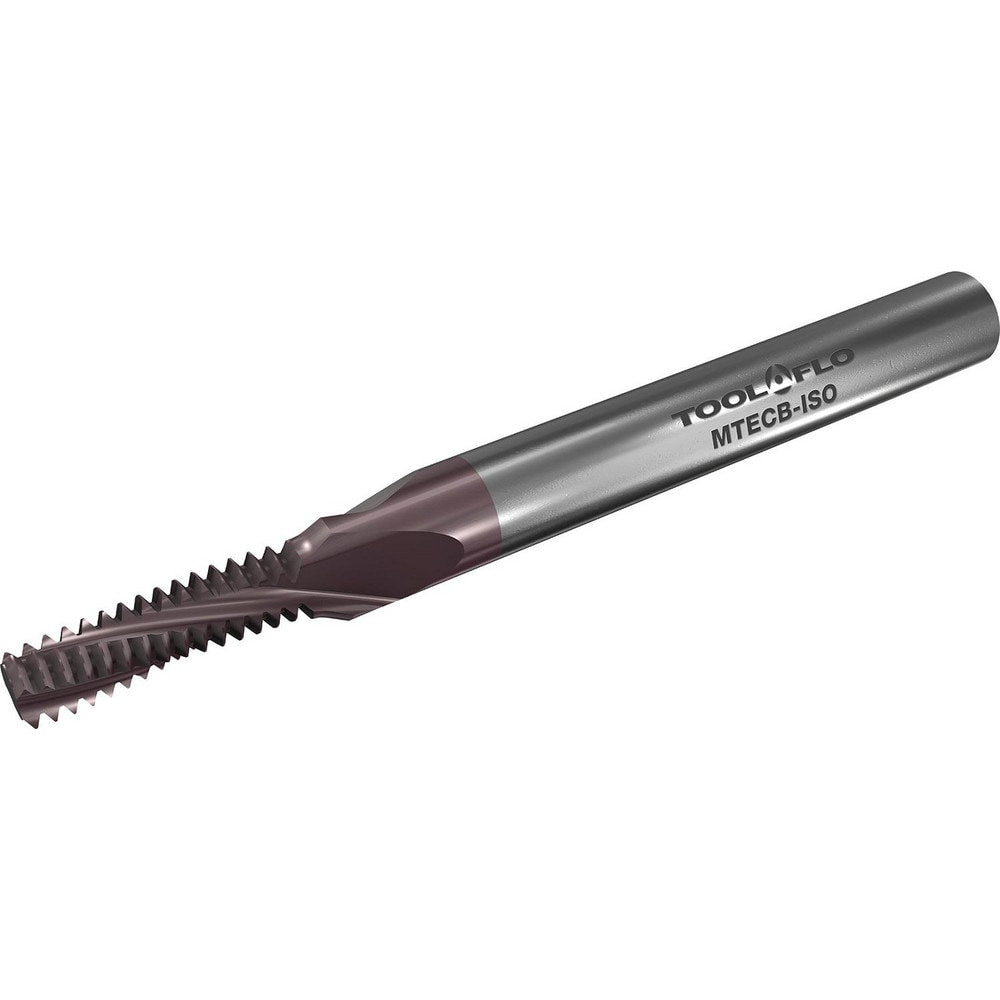

Helical Flute Thread Mill: M4x0.7 - M5x0.7, Internal, 3 Flute, 6.00 mm Shank Dia, Carbide
Item #: 02066694
Brand: Tool-Flo
Model #: 1271253
Product Specifications
| Material | Carbide |
| Thread Size (mm) | M4x0.7 - M5x0.7 |
| Thread Type | Internal |
| Shank Diameter (mm) | 6.00 |
| Cutting Diameter (mm) | 3.10 |
| Length of Cut (mm) | 7.40 |
| Overall Length (mm) | 58.00 |
| Thread Standard | ISO |
| Flute Direction | Right Hand |
| Material Grade | Micrograin |
| Pitch (mm) | 0.70 |
| Number Of Flutes | 3 |
| Coating/Finish | AlTiN |
| Coolant Through | Yes |
| UNSPSC Code | 23242117 |
