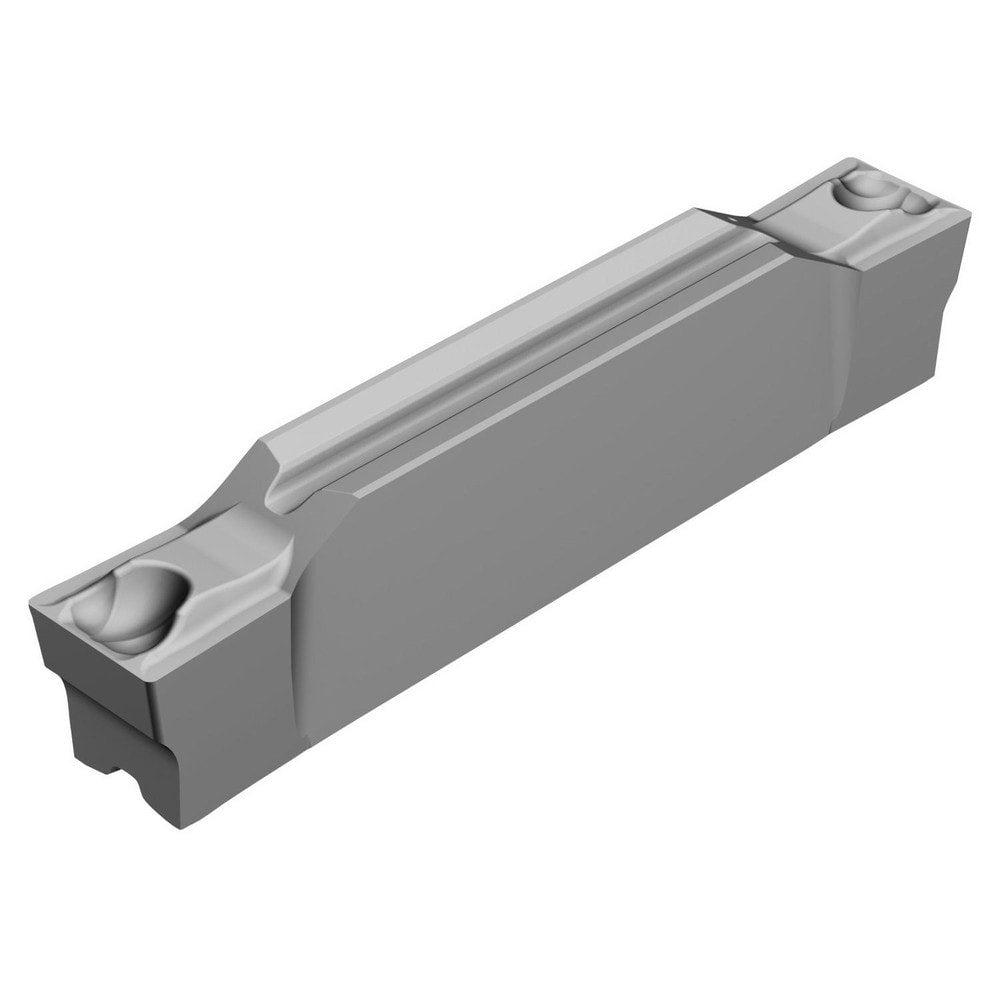

Grooving Insert: C2I H2 GF 5015, Cermet
Item #: 00997320
Brand: Sandvik Coromant
Model #: 8194331
Product Specifications
| Insert Style | C2I |
| Insert Size Code | H |
| Cutting Width (Decimal Inch) | 0.9626 |
| Cutting Width (mm) | 5.000 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.1130 |
| Maximum Depth of Cut (mm) | 2.87 |
| Insert Material | Cermet |
| Manufacturer Grade | 5015 |
| Full Radius | No |
| Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (mm) | 0.2 |
| Number Of Cutting Edges | 2 |
| Rake | Neutral |
| Face Grooving | Yes |
| Insert Holding Method | Clamp |
| Insert Size | H2 |
| Cutting Height (mm) | 24.45 |
| Cutting Height (Decimal Inch) | 0.9626 |
| Lead Angle | 0.000 |
| Multi-use Tool | No |
| Series | CoroCut 2 |
| Coating Process | Uncoated |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Ansi Code | C2I-H2N-0500-0002-GF5015 |
| Iso Code | C2I-H2N-0500-0002-GF5015 |
| Manufacturers Catalog Number | C2I-H2N-0500-0002-GF5015 |
| UNSPSC Code | 23242105 |
| Chip Breaker | GF |
| Coating/Finish | Uncoated |
| For Use With | Parting & Grooving Tool Holders |
