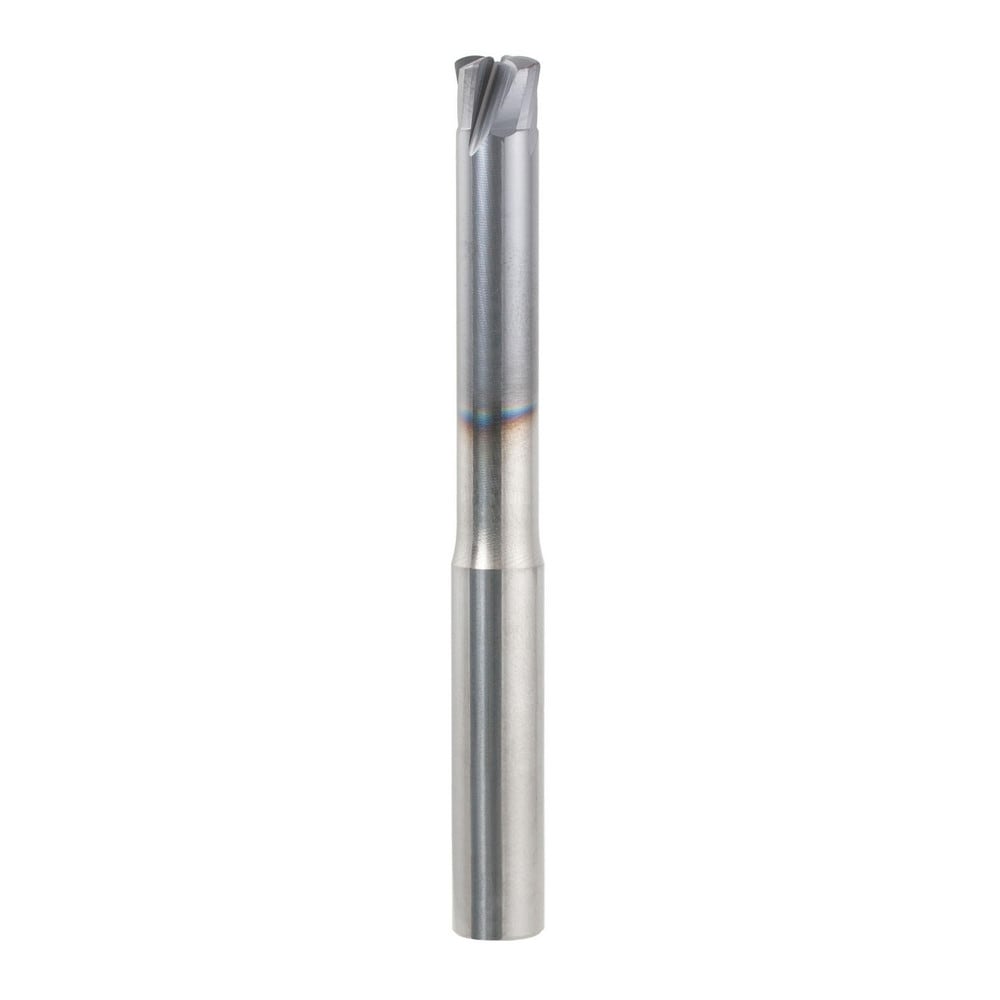

Corner Radius End Mill: 5/16" Dia, 0.41 mm LOC, 0.0373" Radius, 4 Flutes, Solid Carbide
Item #: 35247014
Brand: Seco
Model #: 03043605
Product Specifications
| Mill Diameter (Decimal Inch) | 0.3125 |
| Mill Diameter (Inch) | 5/16 |
| Program Radius (Decimal Inch) | 0.0373 |
| Number of Flutes | 4 |
| Material | Solid Carbide |
| Finish/Coating | AlTiN |
| Length of Cut (Decimal Inch) | 0.0160 |
| Length of Cut (Inch) | 0.0160 |
| Shank Diameter (Inch) | 3/8 |
| Overall Length (Inch) | 3-1/2 |
| Flute Type | Straight |
| Cutting Direction | Right Hand |
| Helix Angle | 0 |
| Reach Length (Decimal Inch) | 1.5625 |
| Reach Length (Inch) | 1-9/16 |
| Neck Diameter (Decimal Inch) | 0.2730 |
| Material Grade | Micrograin |
| Single or Double End | Single |
| Length Type | Short |
| Centercutting | No |
| Flute Direction | Right Hand |
| Extended Reach | Yes |
| Shank Type | Cylindrical |
| UNSPSC Code | 27112803 |
| Series | SN400R |
| Chipbreaker | No |
