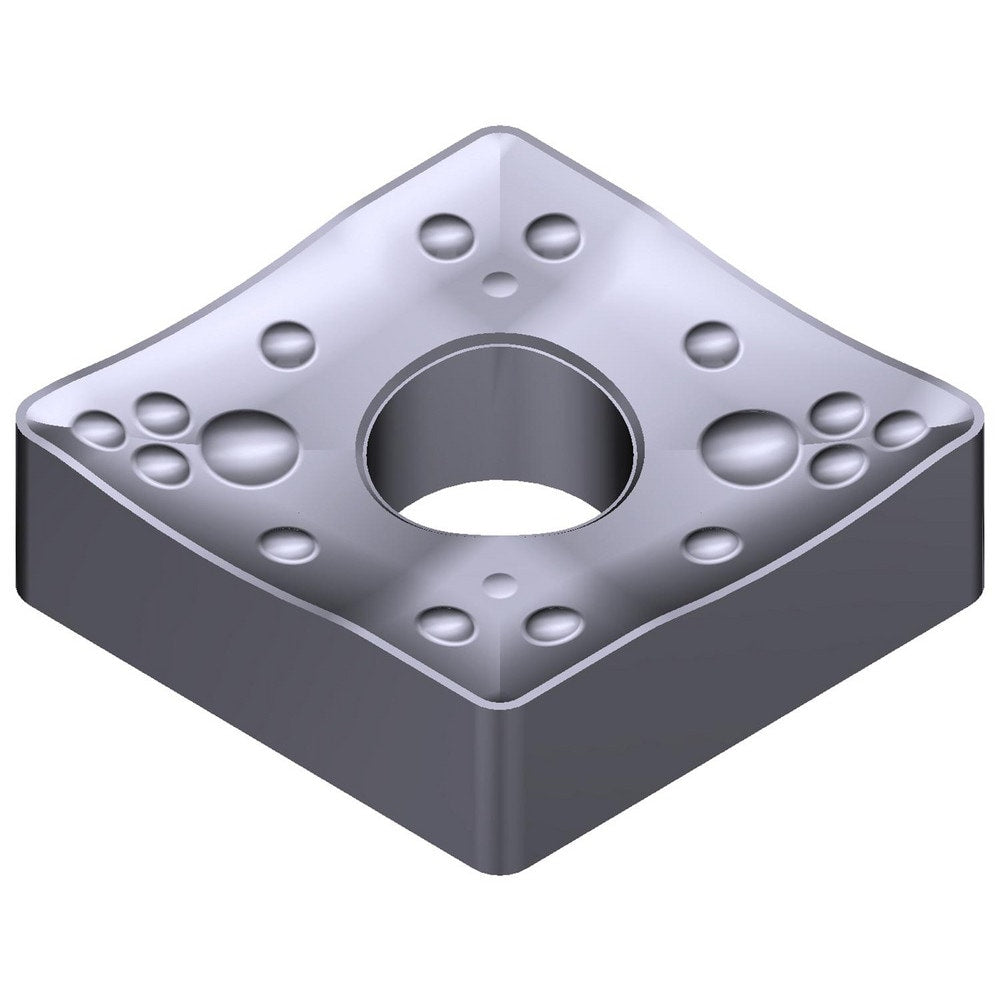

Turning Insert: CNMM542ENP AC5005S, Carbide
Item #: 14598676
Brand: Sumitomo
Model #: 19W2457
Product Specifications
| ANSI Insert Code | CNMM542 |
| ISO Insert Code | CNMM160608 |
| Relief Angle | 0 |
| Insert Style | CNMM |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 80 |
| Manufacturer Grade | AC5005S |
| Coating/Finish | Absotech |
| Insert Thickness (Inch) | 1/4 |
| Series | AC5005S |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Inscribed Circle (Inch) | 5/8 |
| Insert Material | Carbide |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Chip Breaker Operation | Heavy Machining; Roughing |
| Grade Characteristics | Special, Super Alloys (S) - High Wear-Resistance |
| Side Clearance | Negative |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.2500 |
| Hole Diameter (Mm) ( - 0 Decimals) | 6.35 |
| Insert Holding Method | Pin; Clamp |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.6000 - 0.6500 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.6339 |
| Primary Workpiece Material Code | S |
| Iso Code | CNMM160608N-MP |
| Manufacturers Catalog Number | CNMM542ENP-AC5005S |
| Chip Breaker | ENP |
| ANSI Size Code | 542 |
| ISO Size Code | 160608 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 542 |
