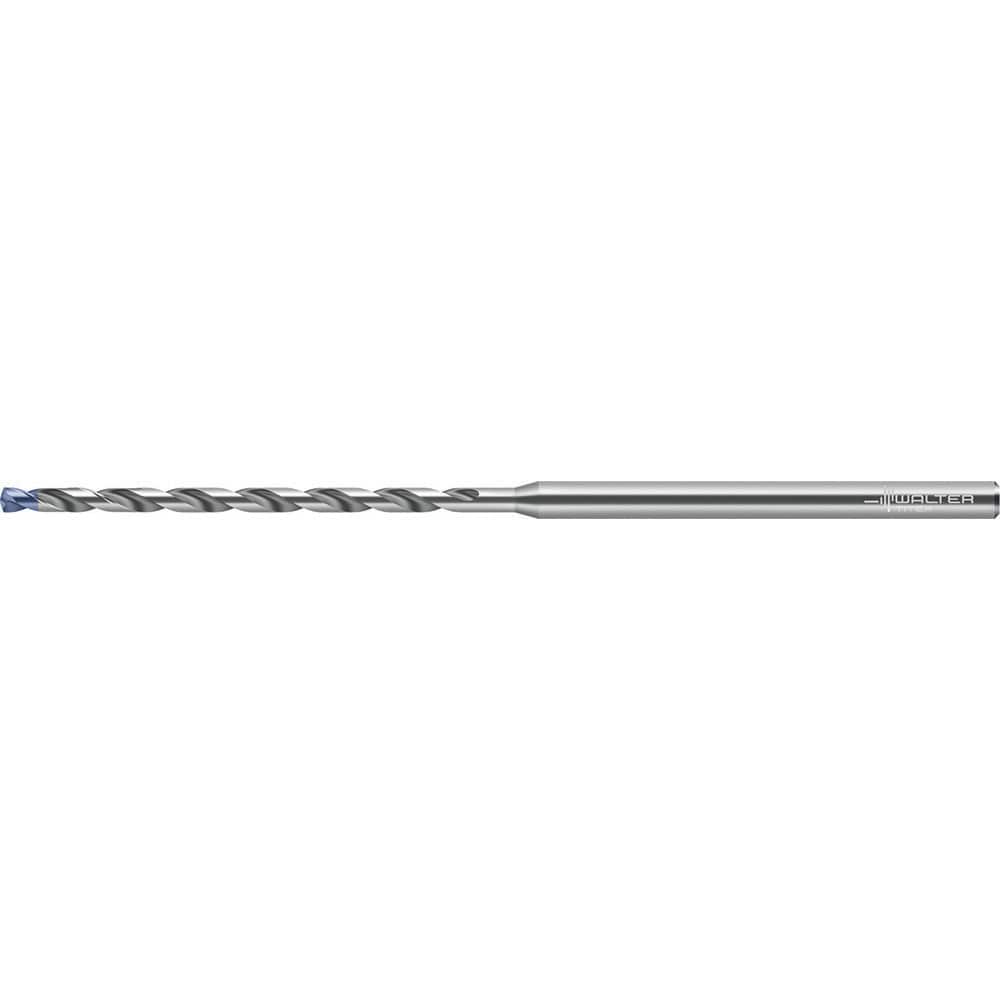

Micro Drill Bit: 2.20 mm Dia, (0.0866"), 140 deg, Solid Carbide
Item #: 40130734
Brand: Walter-Titex
Model #: 8184791
Product Specifications
| Drill Bit Size (mm) | 2.20 |
| Drill Bit Size (Decimal Inch) | 0.0866 |
| Tool Material | Solid Carbide |
| Flute Length (Decimal Inch) | 1.6929 |
| Flute Length (mm) | 43.00 |
| Coating/Finish | AlCrN |
| Coolant Through | Yes |
| Drill Point Angle | 140 |
| Cutting Direction | Right Hand |
| Maximum Drilling Depth (mm) | 39.00 |
| Maximum Drilling Depth (Decimal Inch) | 1.5354 |
| Number Of Flutes | 2 |
| Series | DB133 |
| Overall Length (Decimal Inch) | 3.1890 |
| Overall Length (mm) | 81.00 |
| Flute Type | Spiral |
| Shank Type | Cylindrical |
| Point Type | Standard |
| Tool Application | Through Hole Drilling; Blind Hole |
| Drill Bit Diameter Tolerance | h7 |
| Shank Diameter (Decimal Inch) | 0.1181 |
| Shank Diameter (mm) | 3.0000 |
| Shank Length (Decimal Inch) | 1.3386 |
| Shank Length (mm) | 34.000 |
| Flute By Diameter Ratio | 16xD |
| Spiral Type | Regular |
| UNSPSC Code | 23241600 |
