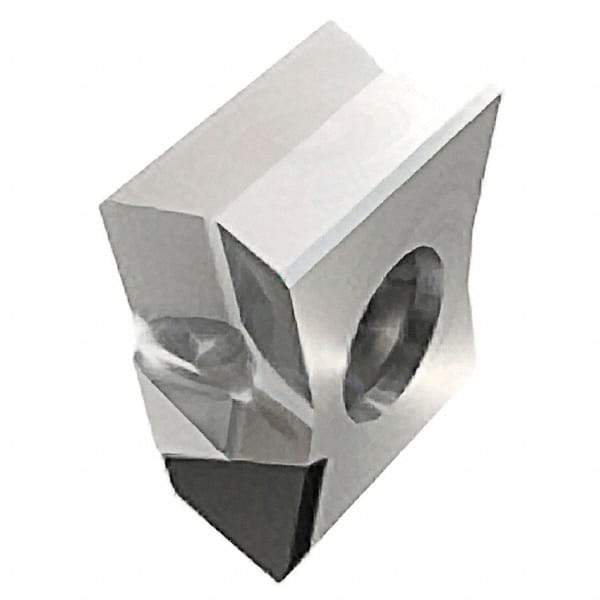

Iscar - LNAR1106 SW Grade ID5 PCD Milling Insert - Uncoated, 0.4232" Thick
Item #: 82463555
Brand: Iscar
Model #: 5605948
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Insert Style | LNAR |
| Insert Size | 1106 |
| Material | PCD |
| Manufacturer's Grade | ID5 |
| Coating | Uncoated |
| Width (Decimal Inch) | 0.2354 |
| Length (Decimal Inch) | 0.4433 |
| Thickness (Decimal Inch) | 0.4232 |
| Relief Angle | 0.000 |
| Rake Angle | 18 |
| Rake | Positive |
| Included Angle | 90 |
| Shape | Rectangle |
| Chipbreaker | SW |
| ISO Number | LNAR 1106PN-R-S-W |
