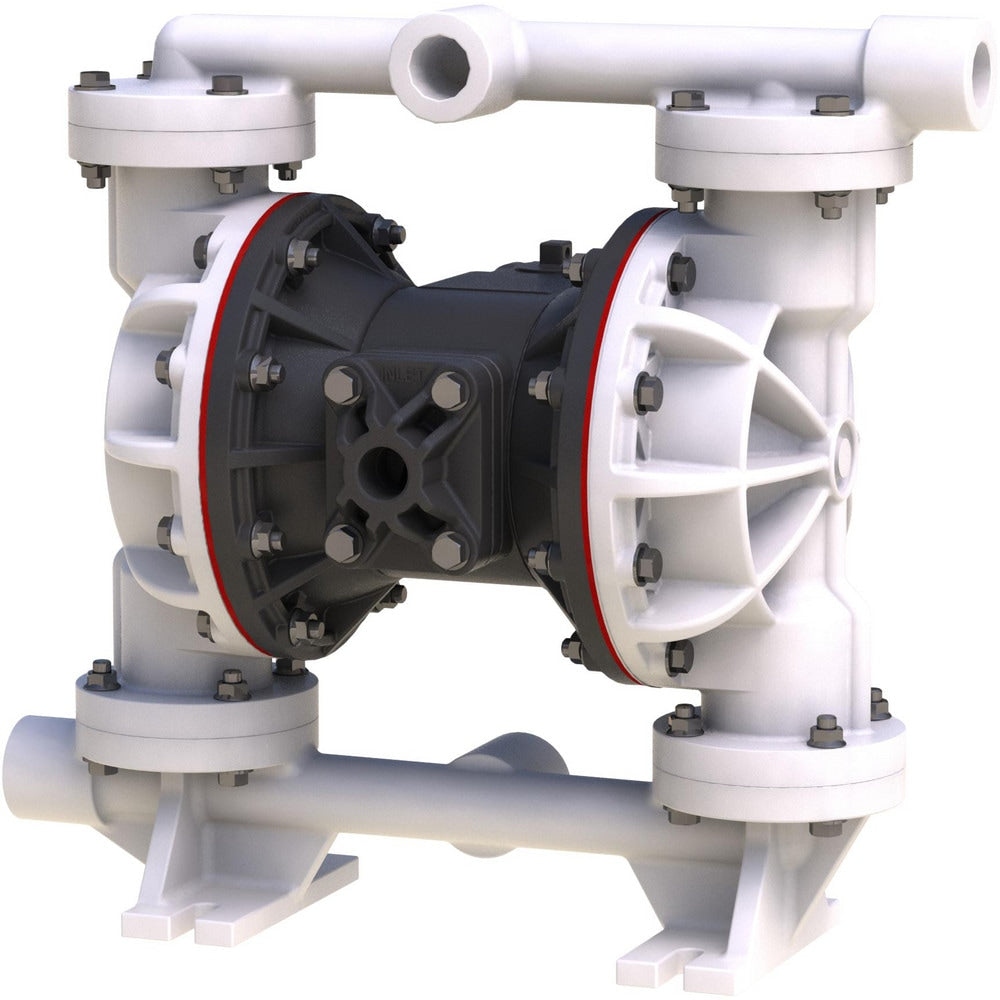

Air-Operated Diaphragm Pumps; Maximum Flow Rate: 53.0 GPM; Maximum Flow Rate (Gpm - 2 Decimals): 53.00; Pump Type: Non-Metallic; Maximum Working Pressure (Psi
Item #: 07773047
Brand: SandPIPER
Model #: S1FB3P2PPNI000.
Product Specifications
| Maximum Flow Rate | 53.0 GPM |
| Maximum Flow Rate (Gpm - 2 Decimals) | 53.00 |
| Pump Type | Non-Metallic |
| Maximum Working Pressure (Psi - 3 Decimals) | 100.000 |
| Maximum Working Pressure | 100.000 psi |
| Maximum Particle Size | 0.25 in |
| Housing Material | Polypropylene |
| Thread Type | NPT |
| Inlet Size | 0.5 in |
| Inlet/Outlet NPT | 1 |
| Cubic Feet Per Minute | 8.51 |
| Diaphragm Material | Polytetrafluroethylene |
| Ball Material | Polytetrafluroethylene |
| Check Seat Material | Polyethylene |
| Port Size | 1 |
| Port Type | NPT |
| Body Material | Polypropylene |
| Length (Decimal Inch - 4 Decimals) | 11.8100 |
| Height (Decimal Inch) | 18.180000 |
| Maximum Temperature (F) ( - 0 Decimals) | 180.000 |
| Maximum Solid Size (Inch) | 1/4 |
| Air Inlet Size (Inch) | 1/2 |
| Width (Decimal Inch - 4 Decimals) | 19.9400 |
| Maximum Cubic Feet Per Minute (CFM) | 8.51 |
| UNSPSC Code | 40151548 |
