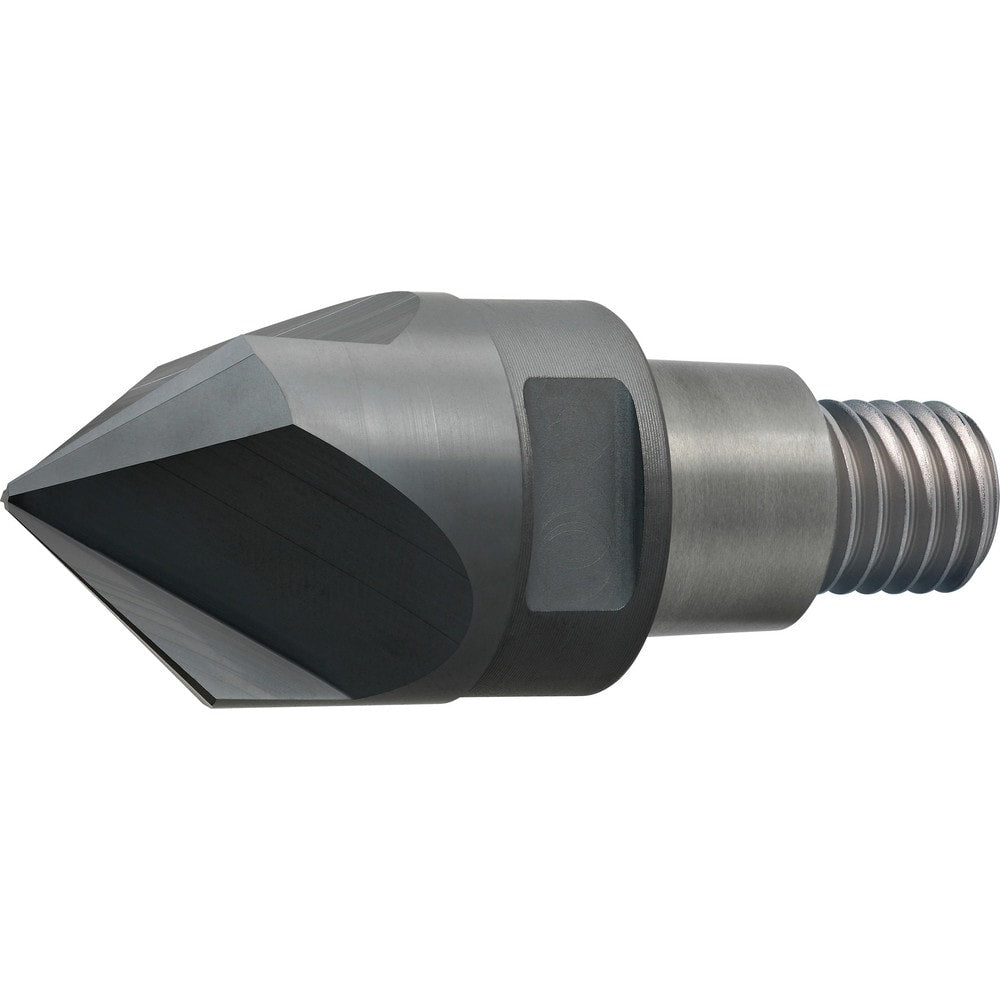

Corner Radius & Corner Chamfer End Mill Heads; Mill Diameter (mm): 12.00; Chamfer Width (mm): 5.200; Chamfer Width (Decimal Inch): 0.205; Chamfer Angle: 46.000; Length of Cut (mm): 5.2000; Number Of Flutes: 3
Item #: 36496594
Brand: Mitsubishi
Model #: 10520765
Product Specifications
| Mill Diameter (mm) | 12.00 |
| Chamfer Width (mm) | 5.200 |
| Chamfer Width (Decimal Inch) | 0.205 |
| Chamfer Angle | 46.000 |
| Length of Cut (mm) | 5.2000 |
| Number Of Flutes | 3 |
| Overall Length (mm) | 19.0000 |
| Coating/Finish | AlCrN |
| End Mill Material | Solid Carbide |
| Overall Length (Decimal Inch) | 0.7480 |
| Mill Diameter (Decimal Inch) | 0.4724 |
| Centercutting | No |
| Connection Type | iMX12 |
| Flute Type | Straight |
| Series | iMX |
| Helix Angle | 4.5 |
| Cutting Direction | Multi-Directional |
| Flute Direction | Right Hand |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.2047 |
| UNSPSC Code | 27112803 |
