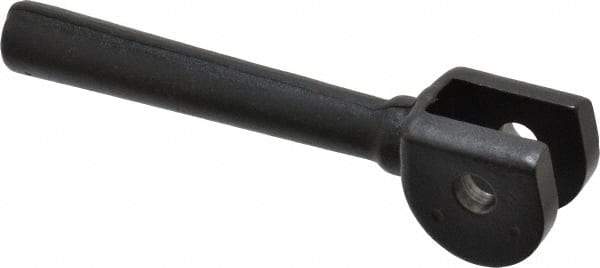

Jergens - 3/8" Hole Diam, 5" Hole Ctr to Lever End, 1-1/8" Overall Width, Double Cam, Clamp Cam Lever - 0.031" Travel, 5/8" Hole Ctr to Cam End, 47/64" Hole Ctr to Cam End Radius, 7/16" Hole Ctr to Cam Top, 33/64" Space Btw Cams
Item #: 82393232
Brand: Jergens
Model #: 18103
Exact Tooling IR#: 04
Features and Benefits
Carbon steel is a soft, durable metal. It is commonly used for general purpose applications on abrasive materials, nonferrous materials, plastics and wood.
| Product Specifications | |
|---|---|
| Type | Double Cam |
| Hole Diameter (Inch) | 3/8 |
| Hole Center to Lever End (Inch) | 5 |
| Overall Width (Inch) | 1-1/8 |
| Travel (Decimal Inch) | 0.0310 |
| Locking Range from Center (Degrees) | 15.00; 30.00 |
| Hole Center to Cam End (Inch) | 5/8 |
| Hole Center to Cam Top (Inch) | 7/16 |
| Hole Center to Cam End Radius (Inch) | 47/64 |
| Hole Center to Cam End Radius (Decimal Inch) | 0.7500 |
| Space Between Cams (Inch) | 33/64 |
| Material | Carbon Steel |
| Material Grade | C-1020 |
| Finish/Coating | Black Oxide |
