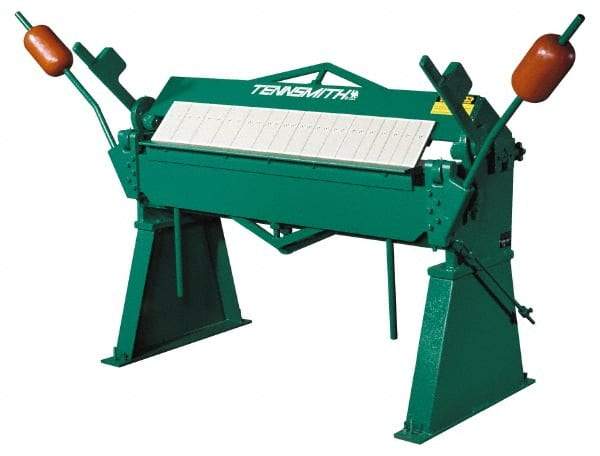

Tennsmith - 48-1/4 Inch Bending Length, Floor Machine Box and Pan Brake - 72 Inch Wide, 36 Inch Deep, 53 Inch High
Item #: 82354960
Brand: Tennsmith
Model #: HBU48-12
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Machine Type | Floor |
| Bending Length (mm) | 1225.55 |
| Bending Length (Inch) | 48-1/4 |
| Maximum Mild Steel Capacity (mm) | 2.70 |
| Maximum Mild Steel Capacity (Gauge) | 12 |
| Maximum Stainless Steel Capacity (mm) | 1.60 |
| Maximum Stainless Steel Capacity (Gauge) | 16 |
| Maximum Depth of Box (mm) | 101.60 |
| Maximum Depth of Box (Inch) | 4 |
| Press Brake Style | Box & Pan Brake |
| Finger Width (mm) | 51.00; 76.00; 101.00 |
| Finger Width (Inch) | 2"; 3"; 4" |
| Maximum Beam Lift (mm) | 38.10 |
| Maximum Beam Lift (Inch) | 1-1/2 |
| Overall Width (mm) | 1828.80 |
| Overall Width (Inch) | 72 |
| Overall Depth (mm) | 914.40 |
| Overall Depth (Inch) | 36 |
| Overall Height (mm) | 1346.20 |
| Overall Height (Inch) | 53 |
