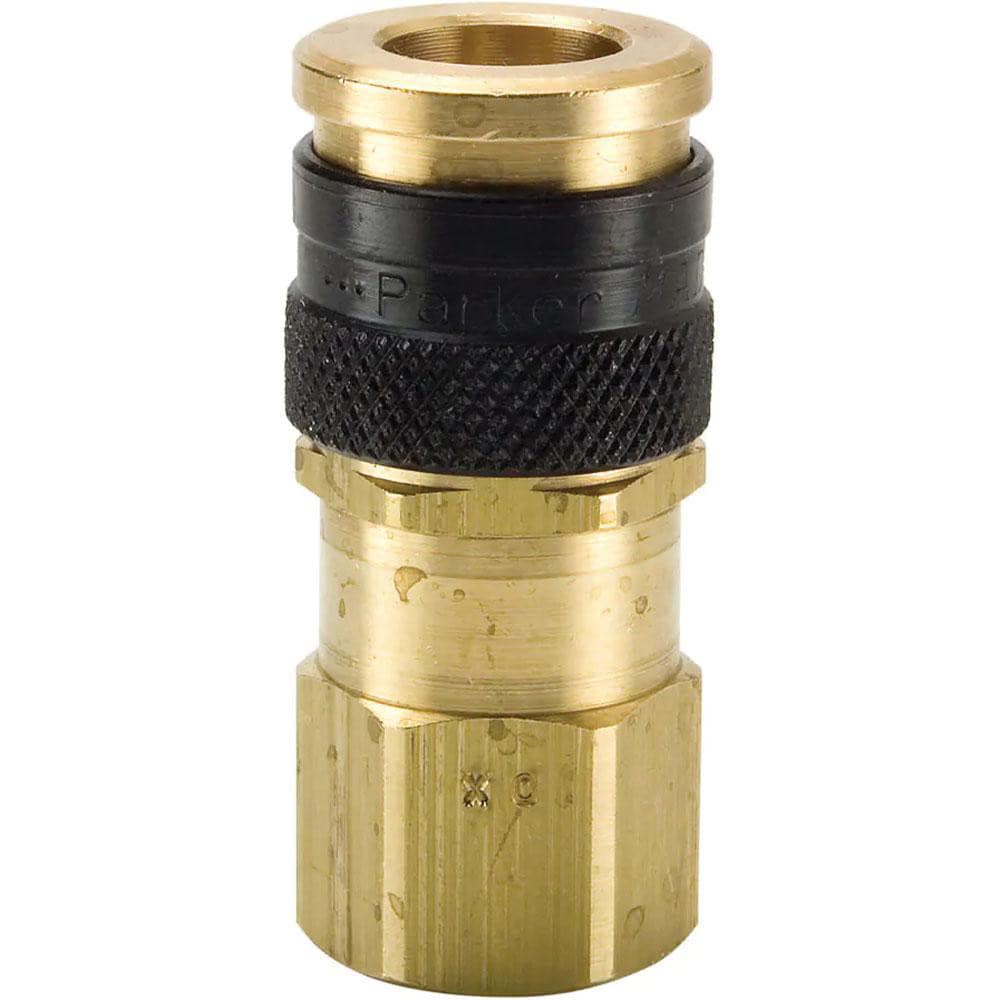

Pneumatic Hose Coupling: 3/8-18" Thread, 3/8" Body Dia, Industrial Interchange
Item #: 09785171
Brand: Parker
Model #: 30KAIN17SPN
Product Specifications
| Type | Coupler |
| Coupling Type | Coupler |
| Interchange Type | Industrial |
| Thread Type | Female NPSF |
| Coupler Size | 0.3750 |
| Material | Brass |
| Thread Standard | Female NPSF |
| Thread Size | 3/8-18 |
| Connection Type | Threaded |
| Body Diameter (Inch) | 3/8 |
| Maximum Working Pressure (Psi - 3 Decimals) | 300.000 |
| Overall Length (Decimal Inch) | 2.3300 |
| Hex Size | 0.9400 |
| Series | 30 Series |
| Maximum Temperature (F) ( - 0 Decimals) | 212.000 |
| Minimum Temperature (Deg F - 3 Decimals) | -4.000 |
| UNSPSC Code | 40141734 |
