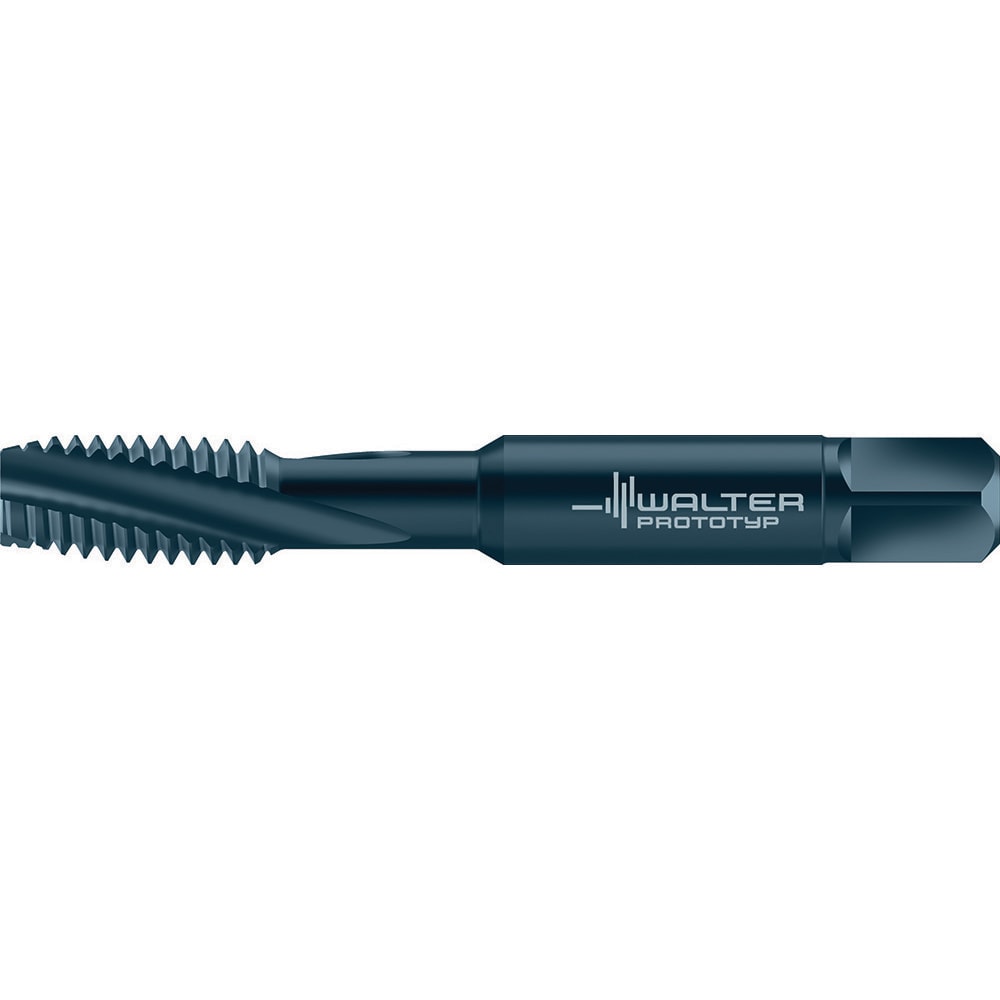

Spiral Flute STI Taps; Thread Size (Inch): #8-36; Overall Length (Decimal Inch): 2.4638; Overall Length (mm): 62.5800; Helix Angle: 15.00; Chamfer: Semi-Bottoming
Item #: 53436127
Brand: Walter-Prototyp
Model #: 8046427
Product Specifications
| Thread Size (Inch) | #8-36 |
| Overall Length (Decimal Inch) | 2.4638 |
| Overall Length (mm) | 62.5800 |
| Helix Angle | 15.00 |
| Chamfer | Semi-Bottoming |
| Thread Limit | H9 |
| Thread Standard | UNF |
| Flute Direction | Right Hand |
| Material | Powdered Metal |
| Thread Length (Decimal Inch) | 0.7874 |
| Thread Length (mm) | 20.00 |
| Shank Diameter (mm) | 5.5800 |
| Number Of Flutes | 3 |
| Class Of Fit | 3B |
| UNSPSC Code | 23241600 |
