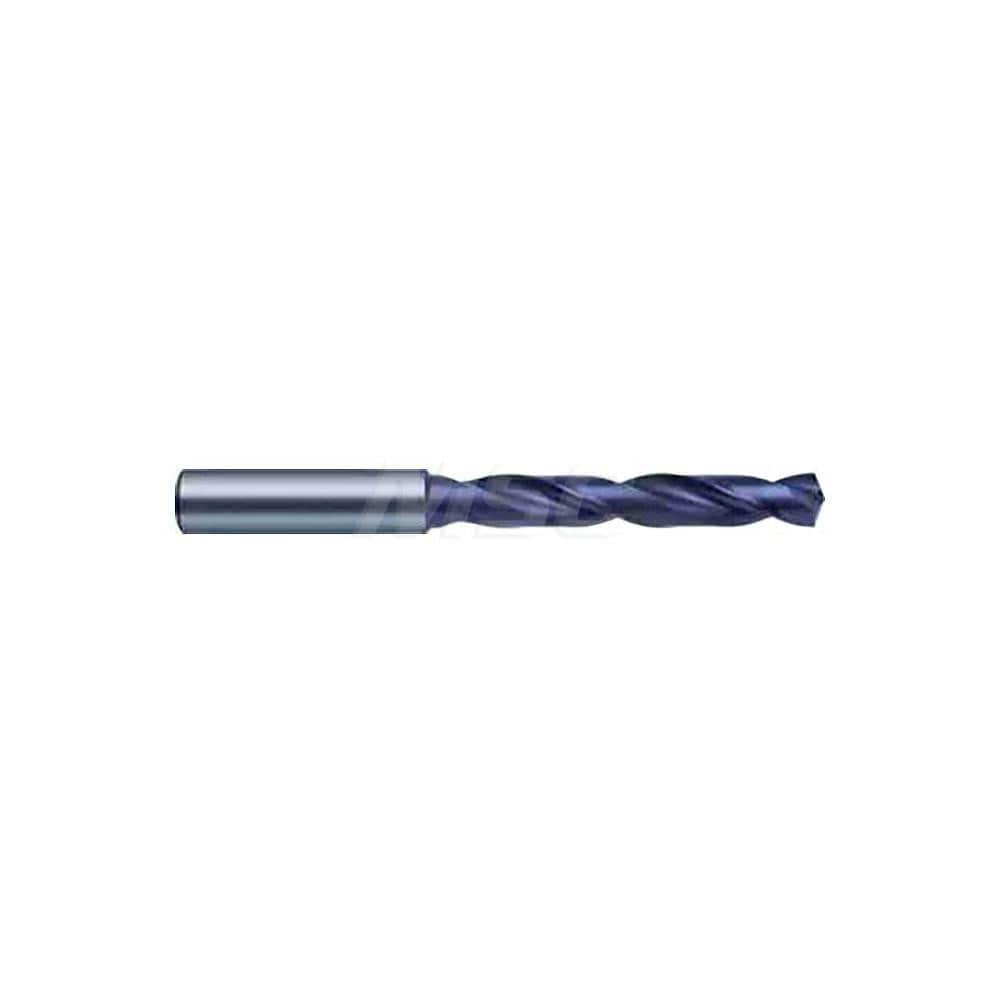

Jobber Drill: 9/16" Dia, 140 deg Point, Solid Carbide
Item #: 56468259
Brand: Guhring
Model #: 9055150142900
Product Specifications
| Drill Bit Size (Inch) | 9/16 |
| Drill Bit Size (Decimal Inch) | 0.5626 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 140 |
| Coating/Finish | Multi-layer |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | 4 Facet |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Specification Number | DIN 6537L |
| Coolant Through | No |
| Number of Flutes | 2 |
| Primary Workpiece Material Code | P; K |
| Overall Length (mm) | 133.00 |
| Overall Length (Decimal Inch) | 5.2362 |
| Spiral Type | Regular |
| Flute Length (mm) | 83.00 |
| Flute Length (Decimal Inch) | 3.2677 |
| Proprietary Coating/Finish | FIREX |
| Series | 5515 |
| Tool Application | Self-Centering |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 16 |
| Maximum Drilling Depth (mm) | 80.00 |
| Shank Length (mm) | 48 |
| Drill Bit Diameter Tolerance | 0.007 to 0.025 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight |
| Standards | DIN 6535; DIN 6537 L |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.5000 - 0.6500 |
| Material Grade | Submicron |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| Drill Bit Size (Inch) | 9/16 |
| Drill Bit Size (Decimal Inch) | 0.5626 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 140 |
| Coating/Finish | Multi-layer |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | 4 Facet |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Specification Number | DIN 6537L |
| Coolant Through | No |
| Number of Flutes | 2 |
| Primary Workpiece Material Code | P; K |
| Overall Length (mm) | 133.00 |
| Overall Length (Decimal Inch) | 5.2362 |
| Spiral Type | Regular |
| Flute Length (mm) | 83.00 |
| Flute Length (Decimal Inch) | 3.2677 |
| Proprietary Coating/Finish | FIREX |
| Series | 5515 |
| Tool Application | Self-Centering |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 16 |
| Maximum Drilling Depth (mm) | 80.00 |
| Shank Length (mm) | 48 |
| Drill Bit Diameter Tolerance | 0.007 to 0.025 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight |
| Standards | DIN 6535; DIN 6537 L |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.5000 - 0.6500 |
| Material Grade | Submicron |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| MSC Part # | 56468259 |
| Mfr Part # | 9055150142900 |
| Country of Origin Country of Origin is subject to change | Germany |
