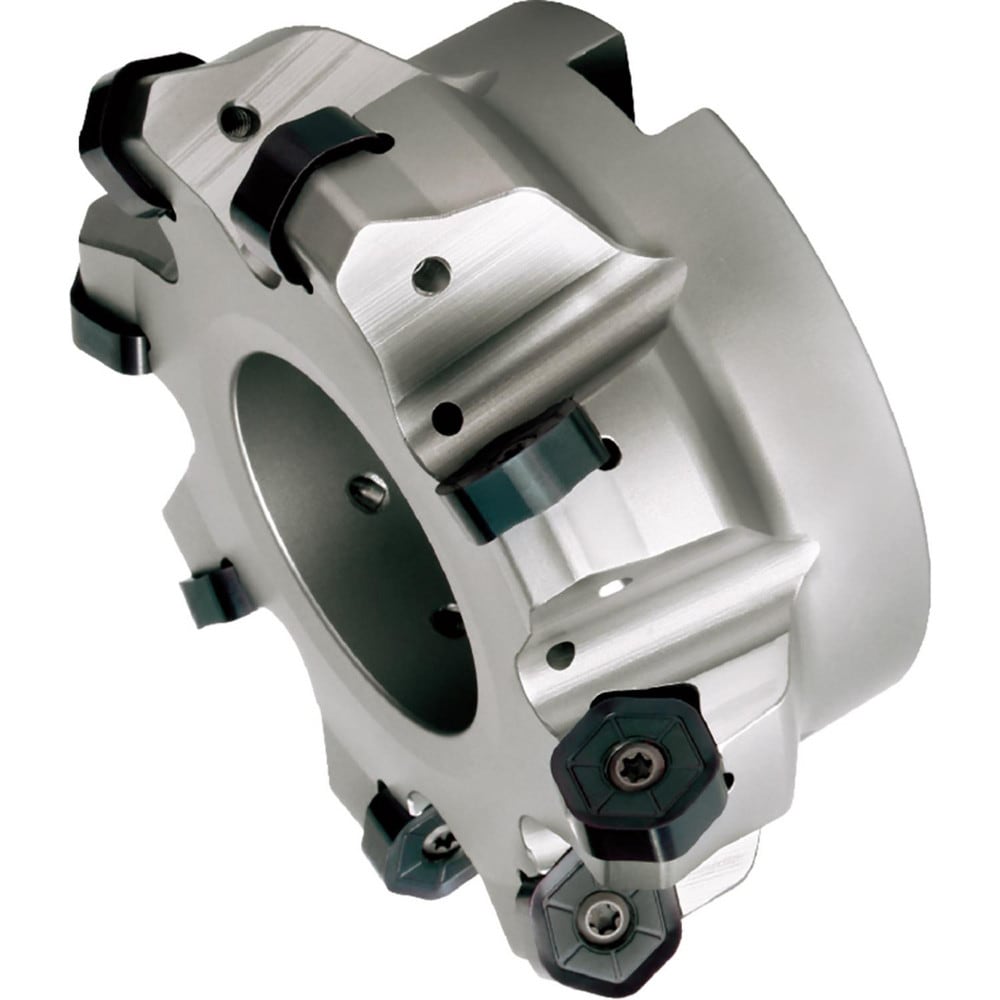

Indexable Chamfer & Angle Face Mills; Minimum Cutting Diameter (mm): 160.00; Maximum Cutting Diameter (mm): 170.97; Maximum Depth of Cut (mm): 4.50; Arbor Hole Diameter (mm): 40.00; Lead Angle: 45.000; Compatible Insert Size Code: HN..0905; Cutter Style:
Item #: 97872220
Brand: Widia
Model #: 3066119
Product Specifications
| Minimum Cutting Diameter (mm) | 160.00 |
| Maximum Cutting Diameter (mm) | 170.97 |
| Maximum Depth of Cut (mm) | 4.50 |
| Arbor Hole Diameter (mm) | 40.00 |
| Lead Angle | 45.000 |
| Compatible Insert Size Code | HN..0905 |
| Cutter Style | M1200 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Negative |
| Series | M1200 |
| Hub Diameter (mm) | 110.000 |
| Overall Height (Mm - 5 Decimals) | 63.00000 |
| Maximum Body Diameter (mm) | 167.10 |
| Maximum RPM | 3900.000 |
| Tool Application | Facing; Milling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Complete Insert Compatibility | HNGJ0905ANENLD |
| Toolholder Material | Steel |
| Number Of Cutter Inserts | 16 |
| Coolant Through | Yes |
| Number Of Flutes | 16 |
| UNSPSC Code | 23291600 |
| Country of Origin | Spain |
