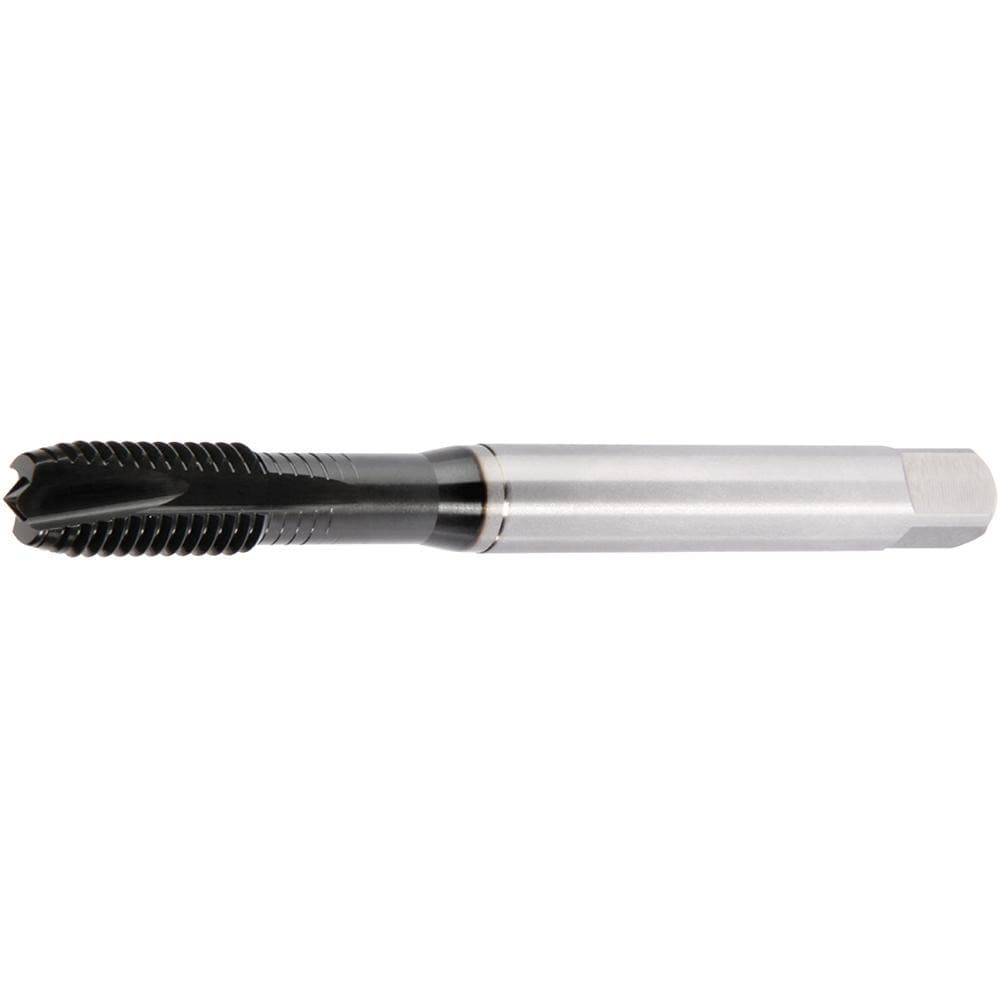

Brand: Widia / Part #: 4160040
Item #: 93311082
Brand: Widia
Model #: 4160040
Product Specifications
| Thread Size (mm) | M8x1.25 |
| Number Of Flutes | 2 |
| Chamfer | Plug |
| Thread Limit | 6H |
| Class Of Fit | 6H |
| Coating/Finish | DLC |
| Threads per Inch | 20 |
| Material | High Speed Steel |
| Coolant Through | No |
| Thread Direction | Right Hand |
| Thread Depth (mm) | 35.00 |
| Thread Pitch (mm) | 1.25 |
| Thread Standard | UNC |
| Material Grade | WN48EG |
| Thread Length (mm) | 20.00 |
| Overall Length (mm) | 90.0000 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Square Length (mm) | 9.00 |
| Square Size (mm) | 6.20 |
| Material Application | Non-Ferrous Metal |
| Series | GT70 |
