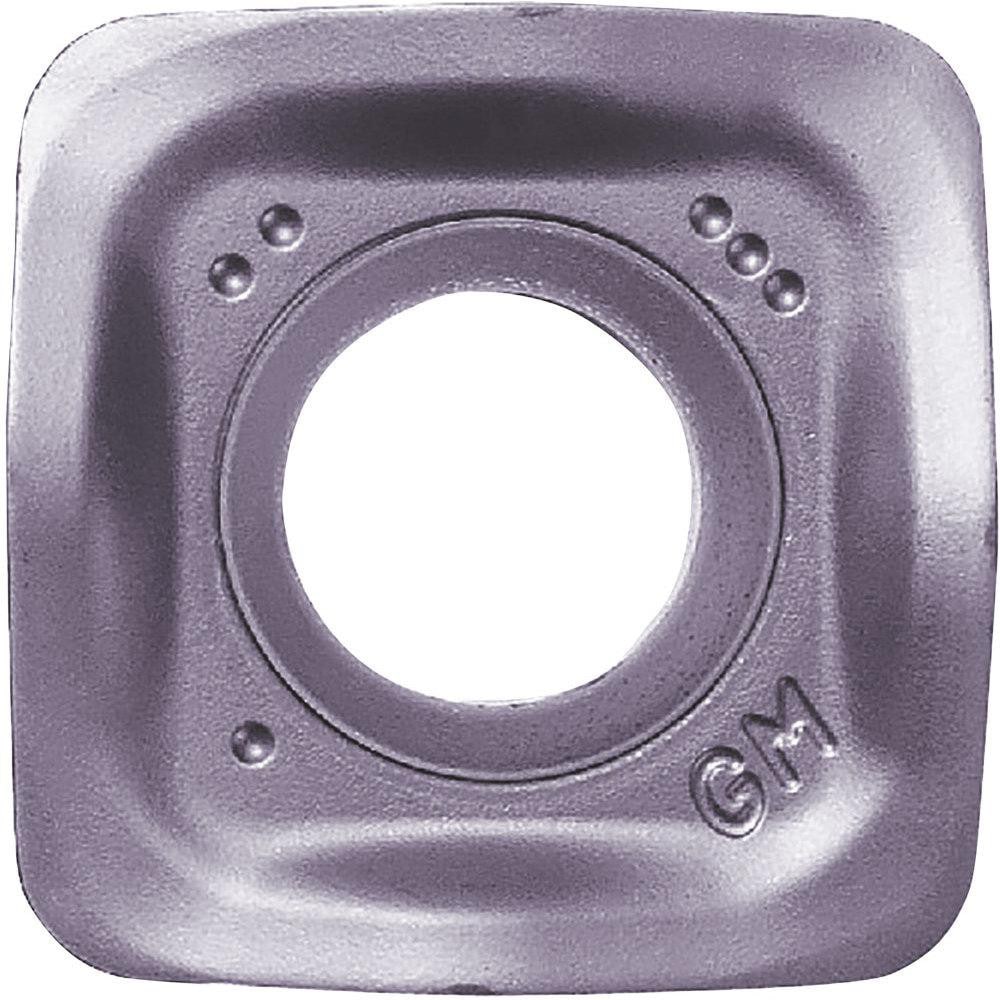

Milling Insert: SOMT140520ER-GM PR1835, Carbide
Item #: 86473436
Brand: Kyocera
Model #: TLU00093
Product Specifications
| Insert Style | SOMT |
| Insert Size | 140520 |
| Insert Material | Carbide |
| Insert Shape | Square |
| Manufacturer Grade | PR1835 |
| Corner Radius (Decimal Inch) | 0.0787 |
| Corner Radius (mm) | 2.00 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2189 |
| Thickness (mm) | 5.5600 |
| Coating/Finish | MEGACOAT NANO EX |
| Relief Angle | 16.000 |
| Thickness (Inch) | 7/32 |
| Inscribed Circle (Decimal Inch) | 0.5567 |
| Inscribed Circle (mm) | 14.14 |
| Corner Radius (Inch) | 5/64 |
| Insert Hand | Right Hand |
| Series | MFH-Raptor Milling |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.8000 |
| Hole Diameter (Decimal Inch) | 0.2284 |
| Rake | Positive |
| Primary Workpiece Material | Austenitic Stainless Steel; Titanium Alloy; Precipitation Hardened Stainless Steel |
| Primary Workpiece Material Code | S; M |
| Secondary Workpiece Material | Mold Steel; Martensitic Stainless Steel; Alloy Steel; Carbon Steel |
| Secondary Workpiece Material Code | P; M |
| Ansi Code | SOMT140520ERGMPR1835 |
| Iso Code | SOMT140520ER-GM |
| Manufacturers Catalog Number | SOMT140520ERGMPR1835 |
| Chip Breaker | ER-GM |
| Cutting Direction | Right Hand |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.5567 |
| Width (mm - 2 Decimals) | 14.14 |
| Multi-Use Tool | Yes |
| Country of Origin | Japan |
