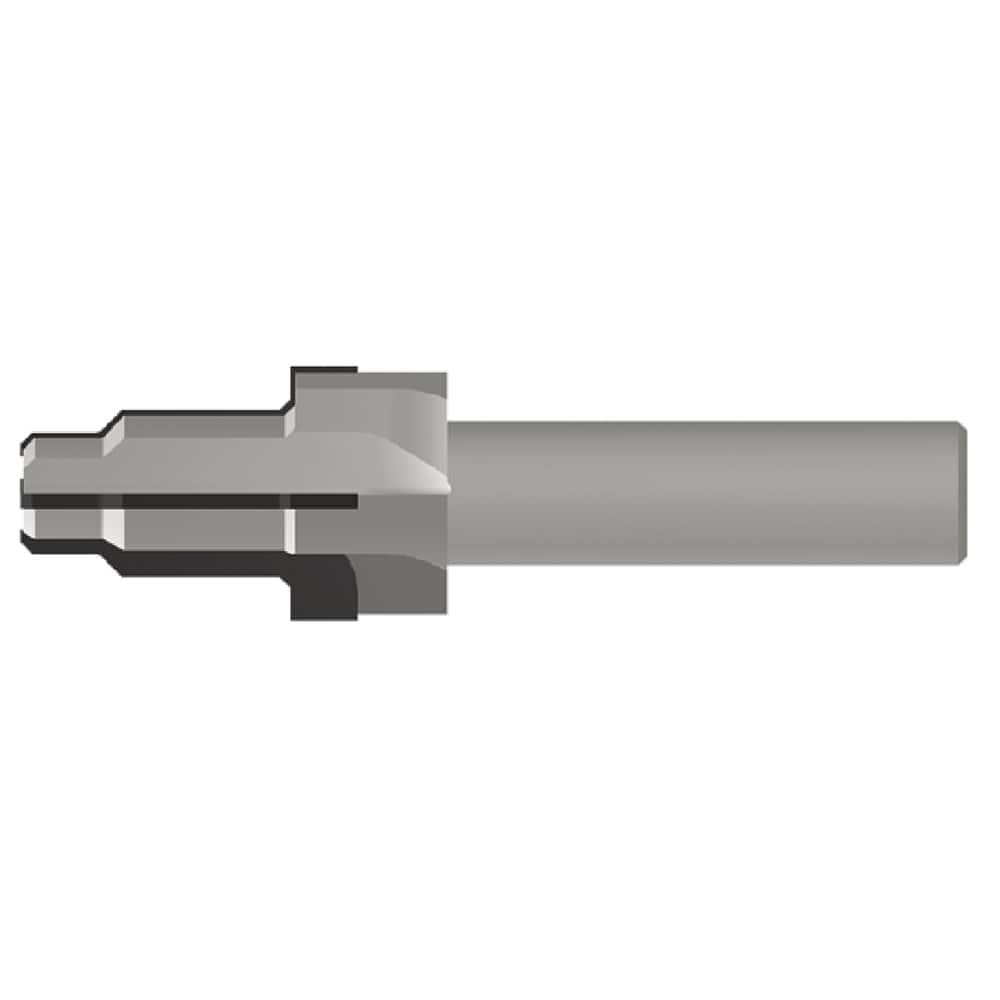

Porting Tool: 0.75″ Spotface Dia, Reamer, 0.5620-18″ Port, Tube Dash #6 0.427″ Min Pilot Dia, 0.262″ Pilot Length, 3-1/4″ OAL, 4 Flutes, MS 21921
Item #: 81299513
Brand: Scientific Cutting Tools
Model #: MS21921-6
Product Specifications
| Spotface Diameter (Decimal Inch) | 0.7500 |
| Pilot Type | Reamer |
| Port Thread Size (Decimal Inch) | 0.5620-18 |
| Tube Dash Number | 6 |
| Minimum Pilot Diameter (Decimal Inch) | 0.4270 |
| Pilot Length | 0.2620 |
| Overall Length (Inch) | 3-1/4 |
| Overall Length (Decimal Inch) | 3.2500 |
| Number Of Flutes | 4 |
| Standards | MS 21921 |
| Identification Groove | No |
| Thread Type | UNJF |
| Flute Type | Straight |
| Shank Diameter (Decimal Inch) | 5/8 |
| Shank Length (Decimal Inch) | 1.7500 |
| Maximum Pilot Diameter (Decimal Inch) | 0.7500 |
| Head Length (Decimal Inch) | 1.5000 |
| Workpiece Compatibility | Tubes |
| Coating/Finish | Bright |
