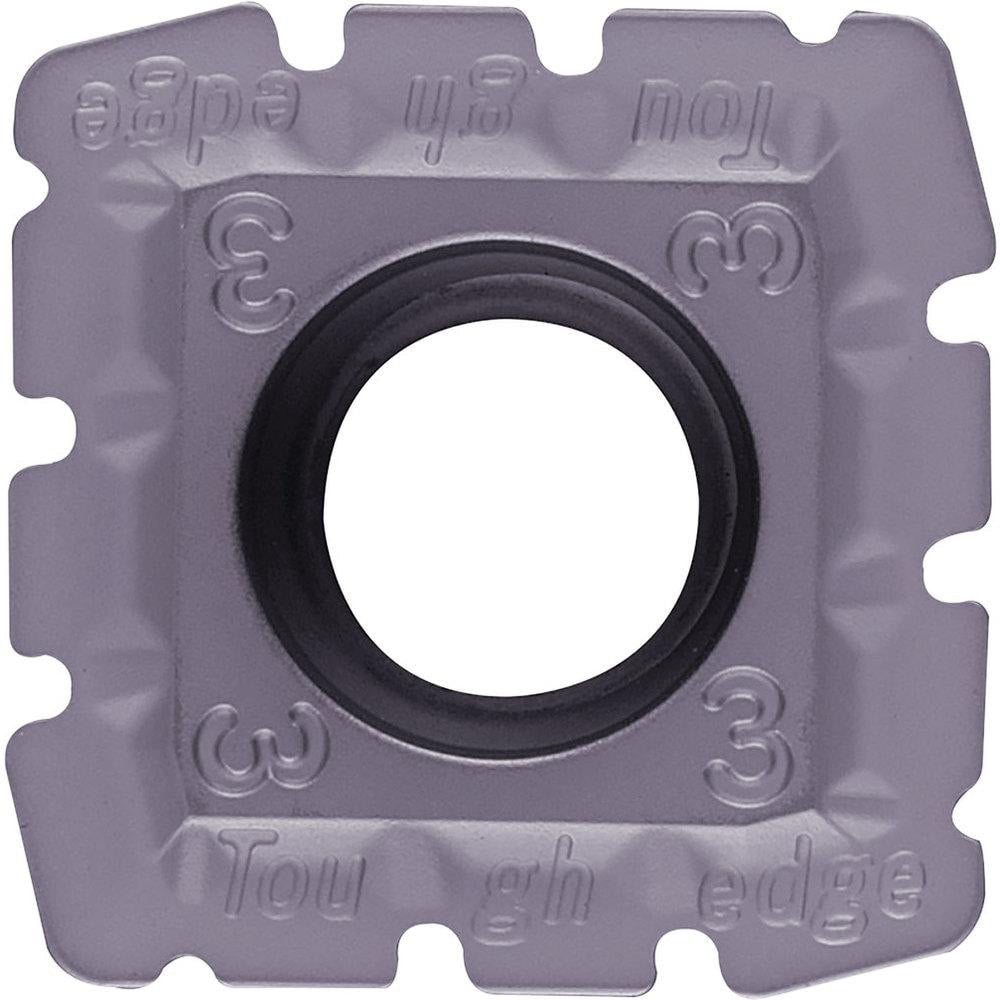

Milling Insert: SPMT060208E-Z PR1810, Carbide
Item #: 86711330
Brand: Kyocera
Model #: TLS00041
Product Specifications
| Insert Style | SPMT |
| Insert Size | 060208 |
| Insert Material | Carbide |
| Insert Shape | Square |
| Manufacturer Grade | PR1810 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.0937 |
| Thickness (mm) | 2.3800 |
| Coating/Finish | MEGACOAT NANO EX |
| Relief Angle | 11.000 |
| Thickness (Inch) | 3/32 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (mm) | 6.35 |
| Corner Radius (Inch) | 1/32 |
| Insert Hand | Neutral |
| Series | MEF Milling |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.5000 |
| Hole Diameter (Decimal Inch) | 0.0984 |
| Rake | Positive |
| Primary Workpiece Material | Nodular Cast Iron; Gray Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | SPMT060208EZPR1810 |
| Iso Code | SPMT060208E-Z |
| Manufacturers Catalog Number | SPMT060208EZPR1810 |
| Chip Breaker | E-Z |
| Cutting Direction | Neutral |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.2500 |
| Width (mm - 2 Decimals) | 6.35 |
| Multi-Use Tool | Yes |
| Country of Origin | Japan |
