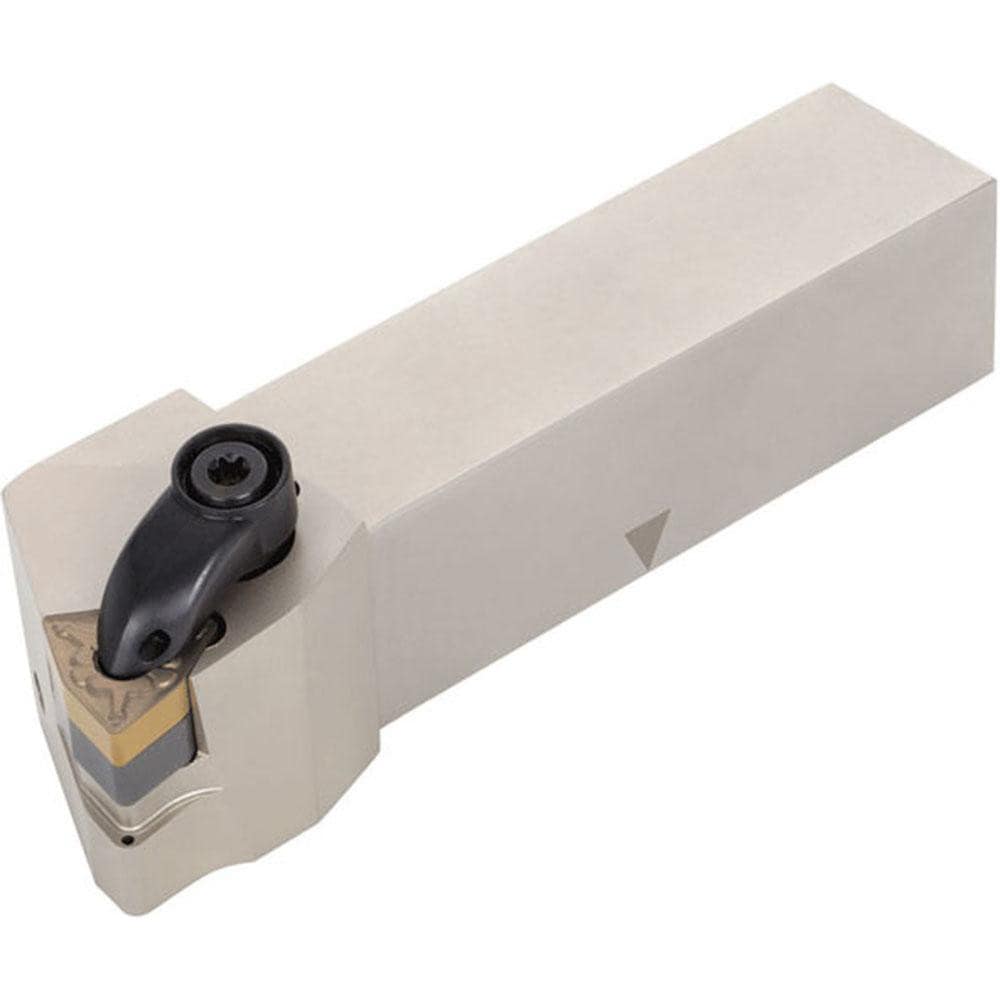

Indexable Turning Toolholder: AWLNR16-4-CHP-MC, 95.000 deg Lead Angle, Clamp
Item #: 61230686
Brand: Tungaloy
Model #: 3346706
Product Specifications
| Toolholder Style | AWLN |
| Hand of Holder | Right Hand |
| Lead Angle | 95.000 |
| Insert Compatibility | WN..43. |
| Insert Holding Method | Clamp |
| Shank Width (Inch) | 1 |
| Shank Height (Inch) | 1 |
| Overall Length (Decimal Inch) | 6.0000 |
| Rake | Negative |
| Cutting Direction | Right Hand |
| Compatible Insert Size Code | WN..43. |
| Rake Angle | 6 |
| Multi-use Tool | Yes |
| Shank Width (Decimal Inch) | 1.0000 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | AWLN |
| Overall Length (Inch) | 6 |
| Cutting Tool Application | Facing; Turning |
| Head Length (Decimal Inch) | 1.4170 |
| Back of Bar to Cutting Edge (Inch) | 1-1/4 |
| Primary Workpiece Material | Universal |
| Insert Inscribed Circle (Inch) | 1/2 |
| Toolholder Material | Steel |
| UNSPSC Code | 23153308 |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Toolholder Style | AWLN |
| Hand of Holder | Right Hand |
| Lead Angle | 95.000 |
| Insert Compatibility | WN..43. |
| Insert Holding Method | Clamp |
| Shank Width (Inch) | 1 |
| Shank Height (Inch) | 1 |
| Overall Length (Decimal Inch) | 6.0000 |
| Rake | Negative |
| Cutting Direction | Right Hand |
| Compatible Insert Size Code | WN..43. |
| Rake Angle | 6 |
| Multi-use Tool | Yes |
| Shank Width (Decimal Inch) | 1.0000 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | AWLN |
| Overall Length (Inch) | 6 |
| Cutting Tool Application | Facing; Turning |
| Head Length (Decimal Inch) | 1.4170 |
| Back of Bar to Cutting Edge (Inch) | 1-1/4 |
| Primary Workpiece Material | Universal |
| Insert Inscribed Circle (Inch) | 1/2 |
| Toolholder Material | Steel |
| UNSPSC Code | 23153308 |
| Insert Thickness (Decimal Inch) | 0.1870 |
| MSC Part # | 61230686 |
| Mfr Part # | 3346706 |
| Country of Origin Country of Origin is subject to change | Israel |
