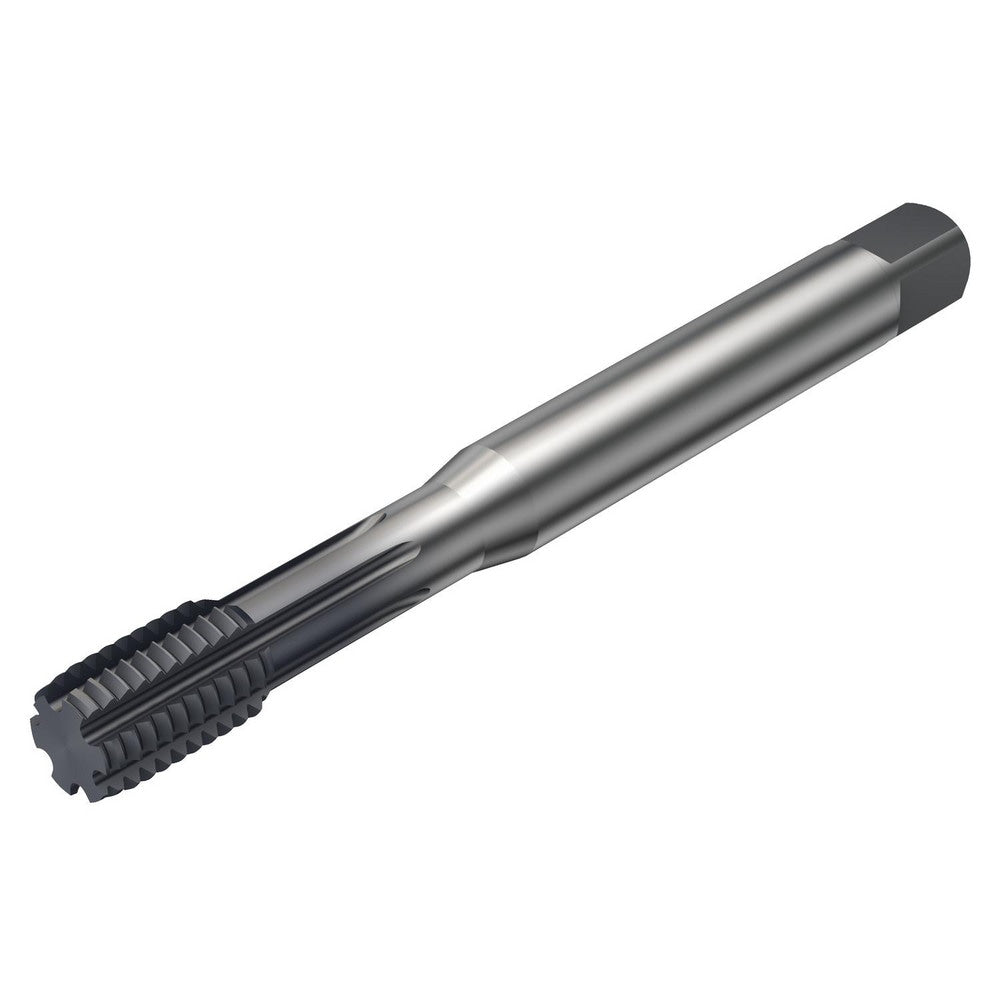

Thread Forming Tap: M, 6HX Class of Fit, Bottoming, Powdered Metal High-Speed Steel, AlCrN Coated
Item #: 02215713
Brand: Sandvik Coromant
Model #: 8405657
Product Specifications
| Thread Size (mm) | M2 |
| Thread Standard | M |
| Chamfer | Bottoming |
| Chamfered Threads | 1.5-2P |
| Material | Powdered Metal High-Speed Steel |
| Coating/Finish | AlCrN |
| Coolant Through | No |
| Class Of Fit | 6HX |
| Thread Limit | D5 |
| Overall Length (Decimal Inch) | 1.7717 |
| Overall Length (mm) | 45 |
| Thread Direction | Right Hand |
| Thread Length (Decimal Inch) | 0.1575 |
| Thread Length (mm) | 4.00 |
| Shank Diameter (Decimal Inch) | 0.1102 |
| Shank Diameter (mm) | 2.8000 |
| Material Application | Non-Ferrous Metal |
| Application | Blind Hole Threading; Through-Hole Threading |
| Series | CoroTap™ 400 |
| Material Application Code | N |
| UNSPSC Code | 23291800 |
