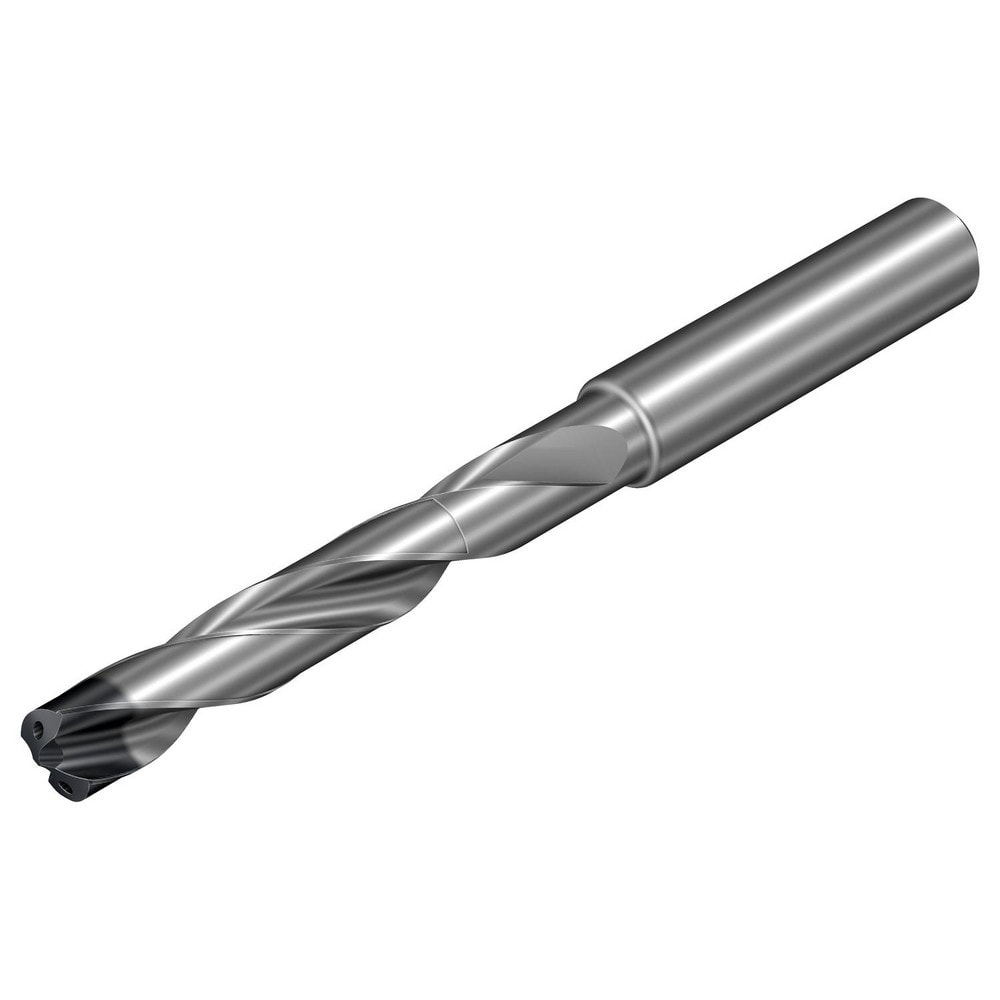

Taper Length Drill: 0.4055" Dia, 140 deg, Solid Carbide
Item #: 01163799
Brand: Sandvik Coromant
Model #: 8421306
Product Specifications
| Drill Bit Size (mm) | 10.30 |
| Drill Bit Size (Decimal Inch) | 0.4055 |
| Tool Material | Solid Carbide |
| Drill Point Angle (Degrees) | 140 |
| Coating/Finish | TiAlSiN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Point Type | Split |
| Coolant Through | Yes |
| Shank Type | Cylindrical |
| Threaded Shank | No |
| Shank Diameter (mm) | 12.0000 |
| Flute Length (Decimal Inch) | 5.0394 |
| Flute Length x Diamter Ratio | 8xD |
| Overall Length (mm) | 180 |
| Overall Length (Decimal Inch) | 7 |
| Material Application3 | Superalloys & Titanium |
| Series | CoroDrill 860 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Flute Length X Diameter Ratio | 8xD |
| Maximum Drilling Depth (Decimal Inch) | 3.3177 |
| Maximum Drilling Depth (mm) | 84.27 |
| Shank Length (Decimal Inch) | 2.0472 |
| Shank Length (mm) | 52.000 |
| Drill Point Length (Decimal Inch) | 0.0738 |
| Flute Length (mm) | 128.00 |
| Drill Point Length (mm) | 1.87 |
| Drill Bit Diameter Tolerance | h6 |
| Drill Bit Grade | S2BM |
| Specification Designation | DIN |
| UNSPSC Code | 23291500 |
