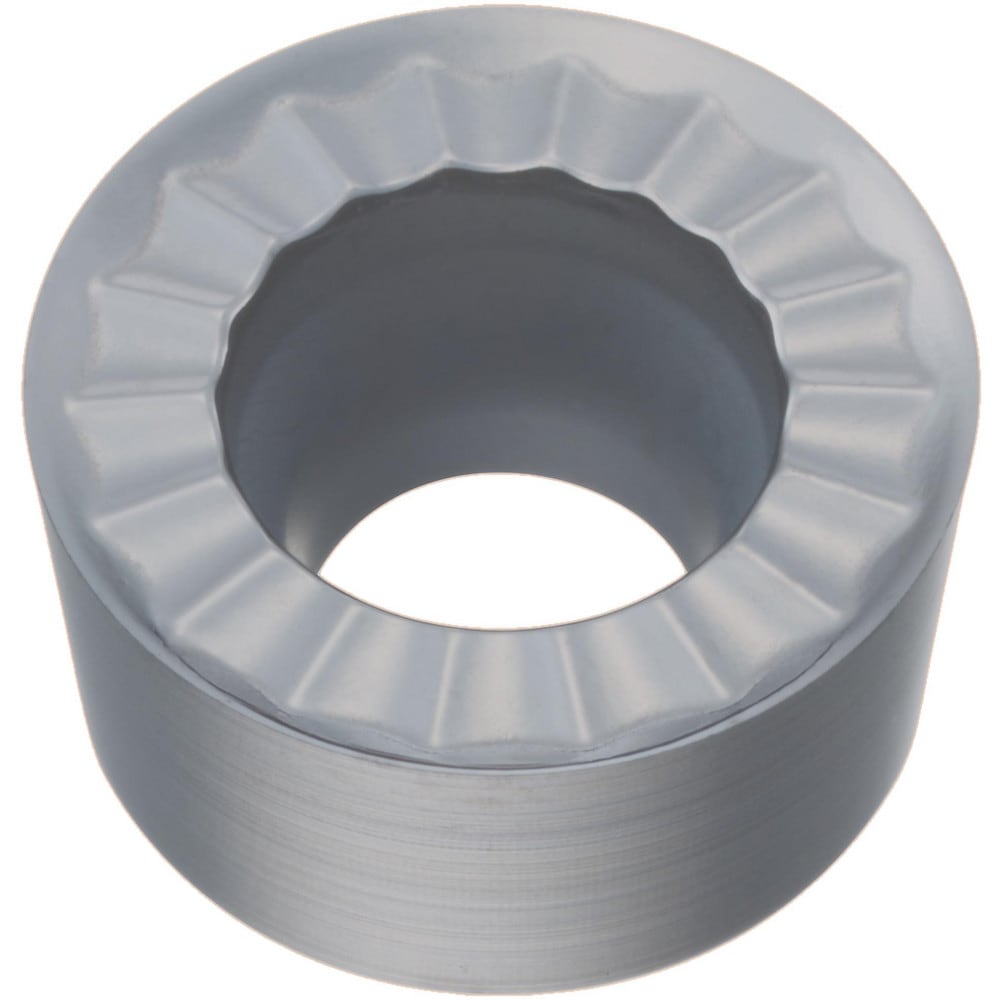

Turning Insert: RCGT0803M0-AZ HTI10, Carbide
Item #: 03169281
Brand: Mitsubishi
Model #: 461579
Product Specifications
| ANSI Insert Code | RCGT0803M0 |
| ISO Insert Code | RCGT0803M0 |
| Relief Angle | 7 |
| Insert Style | RCGT |
| Corner Radius (mm) | 4.00 |
| Manufacturer Grade | Uncoated |
| Coating/Finish | Bright/Uncoated |
| Insert Hand | Neutral |
| Insert Thickness | 3.00 |
| Inscribed Circle (Decimal Inch) | 0.3150 |
| Inscribed Circle (mm) | 8.00 |
| Insert Material | Carbide |
| Insert Shape | R - Round |
| Chip Breaker Operation | Medium Machining; Finishing |
| Side Clearance | Positive |
| Insert Shape Code | R |
| Clearance Code | C |
| Tolerance Code | G |
| Chip Breaker | AZ |
| ANSI Size Code | 0803M0 |
| ISO Size Code | 0803M0 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 08 |
