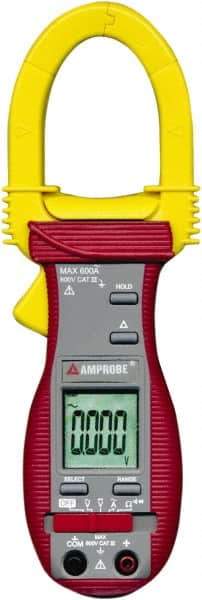

Amprobe - 2730785, CAT III, Digital Average Responding Clamp Meter with 1.7717" Clamp On Jaws - 600 VAC/VDC, 1000 AC Amps, Measures Voltage, Current, Resistance
Item #: 81088460
Brand: Amprobe
Model #: 2730785
Exact Tooling IR#: 04
Features and Benefits
Clamp on meters are designed with jaws that open and close to fit around a conductor to measure AC or DC currents.
| Product Specifications | |
|---|---|
| Measures | Voltage; Current; Resistance |
| Jaw Style | Clamp On |
| Jaw Capacity (Decimal Inch) | 1.7717 |
| CAT Rating | CAT III |
| Maximum DC Voltage | 600 |
| Maximum AC Voltage | 600 |
| Maximum AC Current (A) | 1000 |
| Maximum Resistance (Megohms) | 40 |
| Display Type | Digital |
| AC Wave Measurement | Average Responding |
| Additional Functions | Diode Test; Relative |
| Includes | Test Leads; Case; Manual |
| Counts | 4000 |
| Battery Type | CR2032 |
| Standards Met | IEC61010; IEC61326 |
| PSC Code | 6625 |
