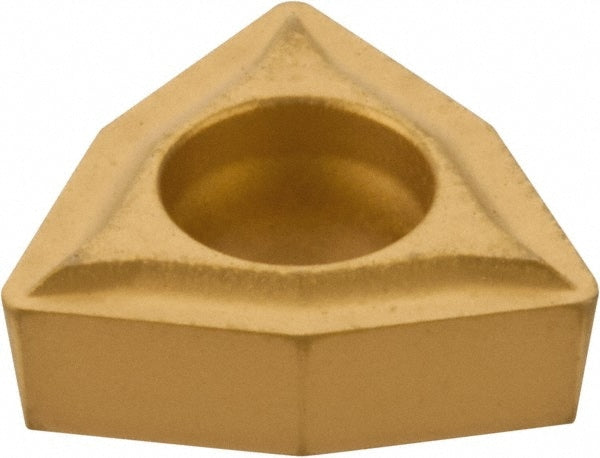

Boring Insert: WCGT215 CV6, Solid Carbide
Item #: 76599000
Brand: Everede Tool
Model #: 04395
Product Specifications
| Insert Style | WCGT |
| Insert Size Code | 215 |
| Insert Material | Solid Carbide |
| Material Grade | C5; C6 |
| Thickness (Inch) | 3/32 |
| Manufacturer Grade | CV6 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Screw |
| Corner Radius (Decimal Inch) | 0.0150 |
| Corner Radius (Inch) | 1/64 |
| Relief Angle | 7 |
| Series | WCGT |
| Coating Process | CVD |
| Included Angle | 80 |
| Insert Shape | Trigon |
| Ansi Code | WCGT-21.51 |
| Iso Code | WCGT 040204 |
| Standards | ISO; ANSI |
| Shape | Trigon |
| Coating/Finish | Titanium Nitride |
| UNSPSC Code | 23242105 |
| Thickness (Decimal Inch - 4 Decimals) | 0.0940 |
| Country of Origin | UNITED STATES |
