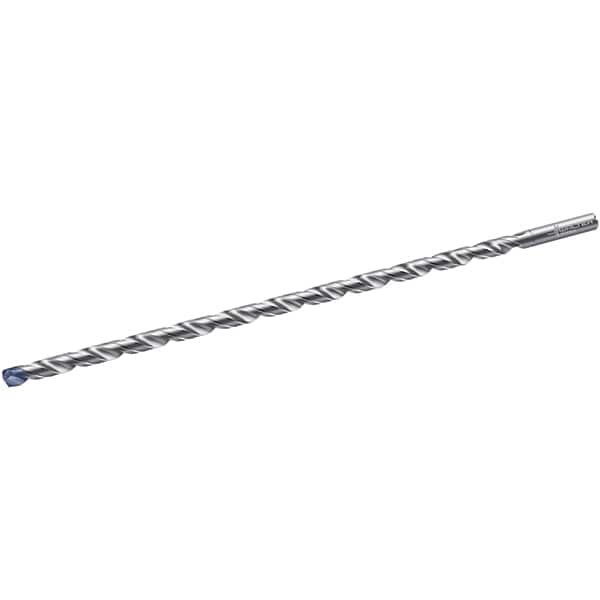

Extra Length Drill Bit: 0.3438″ Dia, 140 °, Solid Carbide Tinal Point Finish, 11.2992″ Flute Length, Spiral Flute, Straight-Cylindrical Shank, Series A6994TFP
Item #: 81077810
Brand: Walter-Titex
Model #: 5565040
Product Specifications
| Overall Length (mm) | 330.00 |
| Flute Length (mm) | 287.00 |
| Tool Material | Solid Carbide |
| Coating/Finish | Tinal Point |
| Drill Point Angle | 140 |
| Shank Type | Straight-Cylindrical |
| Coolant Through | Yes |
| Flute Type | Spiral |
| Series | A6994TFP |
| Point Type | X-treme DH |
| Cutting Direction | Right Hand |
| Tool Application | Cross Hole; Blind Hole; Inclined Hole Exit; Stack Drilling |
| Spiral Type | Regular |
| Drill Bit Diameter Tolerance | h7 |
| Number Of Flutes | 2 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Iron; Nickel; Cobalt; Titanium Alloy |
| Secondary Workpiece Material Code | S; H; K; M; N |
| Standards | ISO; DIN 6535 HA; ANSI |
| Drill Bit Size (Decimal Inch) | 0.3438 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Shank Diameter (mm) | 10.00 |
| Shank Length (Decimal Inch) | 1.5748 |
| Shank Length (mm) | 40.00 |
| Flute Length (Decimal Inch) | 11.2992 |
| Flute By Diameter Ratio | 30xD |
| Maximum Drilling Depth (Decimal Inch) | 10.7480 |
| Maximum Drilling Depth (mm) | 273.00 |
| Material Grade | K30F |
| Specification Designation | DIN |
