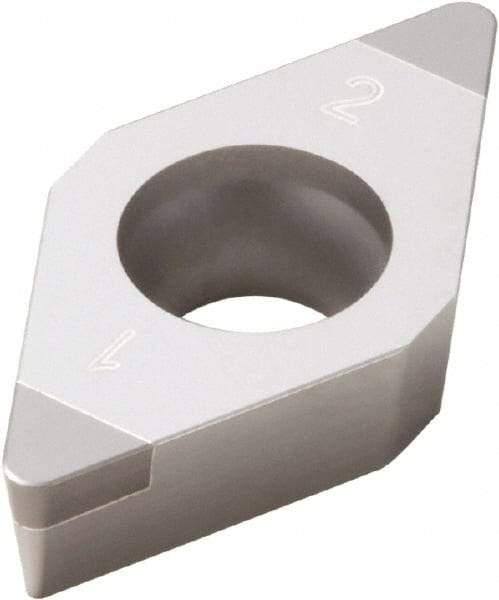

Seco - DCGW32.50 Grade CBN010 PCBN Turning Insert - Uncoated, 55° Diamond, 3/8" Inscr Circle, 5/32" Thick, 0.002" Corner Radius
Item #: 81033185
Brand: Seco
Model #: 81769
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | DCGW |
| Insert Size | 32.50 |
| Material | PCBN |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Decimal Inch) | 0.0020 |
| Manufacturer's Grade | CBN010 |
| Coating | Uncoated |
| Relief Angle | 7 |
| Manufacturers Catalog Number | DCGW 32.50S-00420-L1-B |
| Included Angle | 55 |
| Maximum Depth of Cut (Decimal Inch) | 0.0200 |
| Insert Holding Method | Screw |
| MultiUseTool | No |
| Shape | Diamond |
