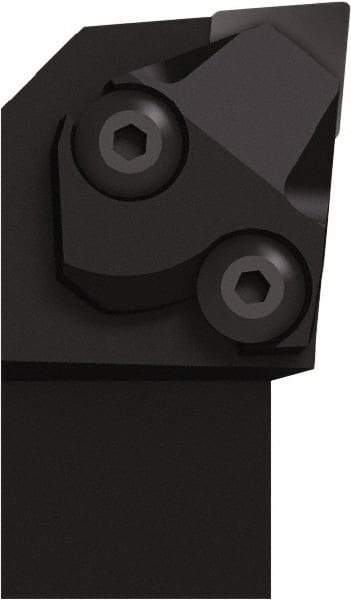

Seco - PCLN, Left Hand Cut, 31.75mm Shank Height x 31.75mm Shank Width, Negative Rake Indexable Turning Toolholder - 152.4mm OAL, CNMG 432 Insert Compatibility, Series Jetstream
Item #: 81025348
Brand: Seco
Model #: 19832
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | PCLN |
| Rake | Negative |
| Series | Jetstream |
| Shank Width (mm) | 31.75 |
| Shank Width (Decimal Inch) | 1.2500 |
| Shank Height (mm) | 31.75 |
| Shank Height (Decimal Inch) | 1.2500 |
| Overall Length (mm) | 152.40 |
| Overall Length (Decimal Inch) | 6.0000 |
| Insert Compatibility | CNMG 432 |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 38.10 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.5000 |
| Head Length (mm) | 35.05 |
| Head Length (Decimal Inch) | 1.3800 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
