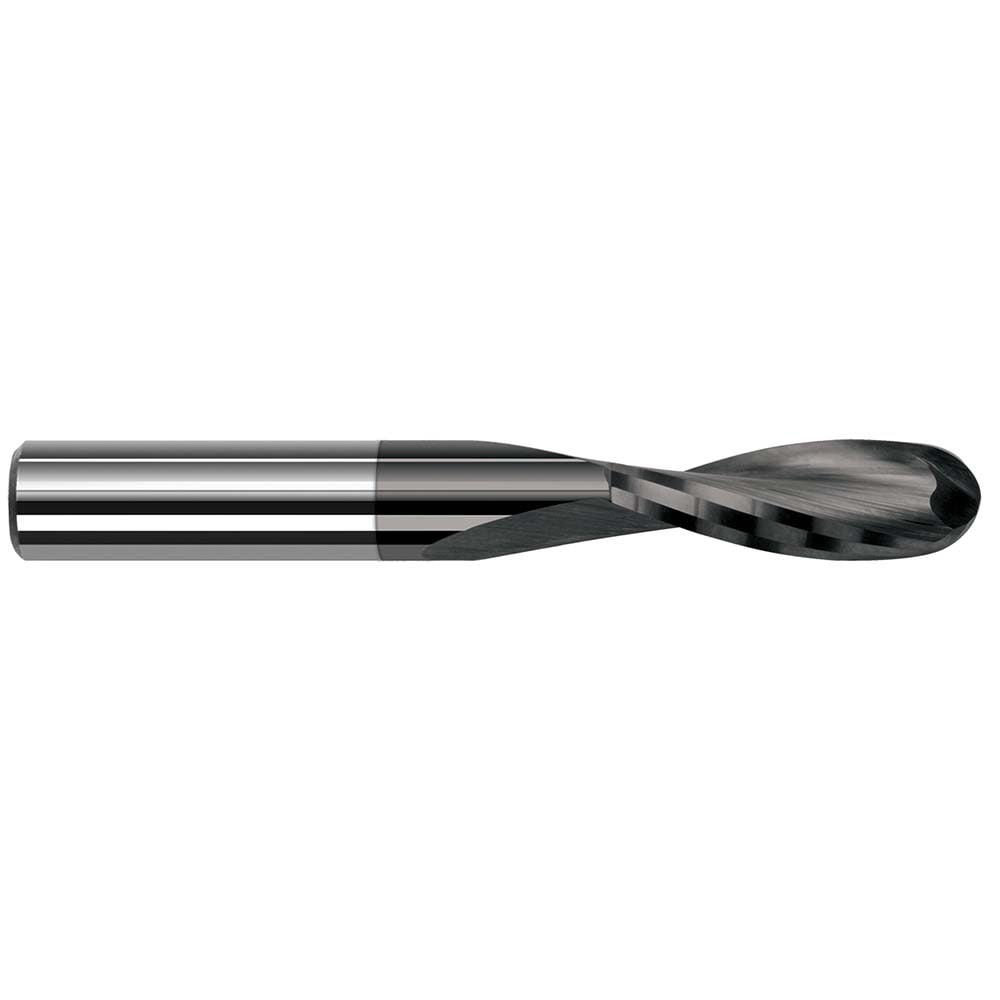

Ball End Mill: 3/16" Dia, 0.5700" LOC, 2 Flute(s), Solid Carbide
Item #: 46164703
Brand: Harvey Tool
Model #: 49612-C4
Product Specifications
| Mill Diameter (Inch) | 3/16 |
| Mill Diameter (Decimal Inch) | 0.1875 |
| Number Of Flutes | 2 |
| End Mill Material | Solid Carbide |
| Coating/Finish | Amorphous Diamond |
| Overall Length (Inch) | 2 |
| Shank Diameter (Inch) | 3/16 |
| Extended Reach | No |
| Variable Helix | No |
| Variable Index | No |
| Helix Angle | 20 |
| Overall Length (Decimal Inch) | 2.0000 |
| Chipbreaker | No |
| Undercutting | No |
| Length Of Cut Range (Decimal Inch) | 0.4000 - 0.7000 |
| Length Type | Standard |
| Material Removal Type | Roughing |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Nose Radius (Decimal Inch) | 0.0938 |
| Reach Length (Decimal Inch) | 0.5700 |
| Mill Diameter Tolerance | +0.0000/-0.0020 in |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Secondary Workpiece Material | Composite; Non-ISO |
| Secondary Workpiece Material Code | O |
| Material Grade | Carbide |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | End Mills for Plastics - Ball Upcut - 2 Flute, Material Specific End Mills |
| Flute Type | Upcut |
| UNSPSC Code | 27112803 |
| Centercutting | Yes |
| Coating Classification | PVD |
| Single Or Double End | Single |
| Shank Type | Straight-Cylindrical |
| Pitch | Coarse |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.5700 |
| Manufacturers Catalog Number | 49612-C4 |
| System Of Measurement | Fractional Inch |
