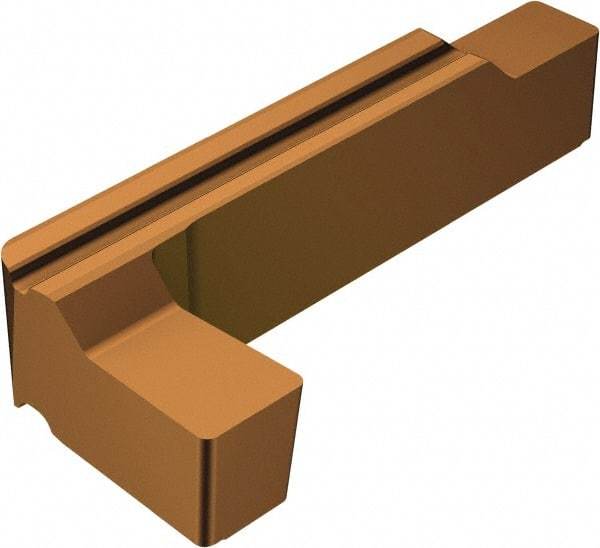

Sandvik Coromant - HXR/LG123.. GS Grade 1115, 3mm Cutting Width Carbide Grooving Insert - 5mm Max Depth of Cut, Right Hand, 0.2mm Corner Radius, TiAlN/AlCr2O3 Finish
Item #: 80965452
Brand: Sandvik Coromant
Model #: 5741218
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | R/LG123.. |
| Insert Size | HX |
| Material | Carbide |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Manufacturer's Grade | 1115 |
| Coating | TiAlN/AlCr2O3 |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Cutting Height (mm) | 4.35 |
| Cutting Height (Decimal Inch) | 0.1713 |
| Lead Angle | 90 |
| Relief Angle | 7 |
| Insert Seat Size | HX |
| Chipbreaker | GS |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting; Grooving; Slitting; Slotting |
| Minimum Corner Radius (Decimal Inch) | 0.0059 |
| Maximum Corner Radius (Decimal Inch) | 0.0098 |
| Corner Radius (mm) | 0.2 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Coating Process | PVD |
| Overall Length (mm) | 25.55 |
| Overall Length (Decimal Inch) | 1.0059 |
| Series | CoroCut 1-2 |
| Rake Angle | 0 |
| Rake | Neutral |
| ISO Number | RG123H1-0300-0002-GS1115 |
| Manufacturers Catalog Number | RG123H1-0300-0002-GS1115 |
| Overall Width (mm) | 3.00 |
| Overall Width (Decimal Inch) | 0.1181 |
| Insert Thickness (Decimal Inch) | 0.1713 |
